What is Shell Mold Casting?
2025-01-02
Shell mold casting is an advanced metal casting process that utilizes a medium-frequency induction electric furnace to melt the metal. This method is distinguished by the creation of a thin-walled shell mold, which is crafted by injecting a precoated sand around a metal pattern to form each half of the shell. The two halves are then meticulously joined together to create a complete mold. This process results in a casting with thin walls and a high degree of detail, making it suitable for producing complex and precise metal components.
Shell Mold Casting Process:
1. Metal Pattern Creation A two-piece metal pattern is meticulously crafted to mirror the shape of the desired part, complete with a pouring cup designed to channel molten metal into the 'shell'. To form a two-part shell, where two halves are united to create a complete mold, two distinct metal patterns must be manufactured.
2. Shell Formation The temperature, pressure, and curing time are meticulously set for the metal pattern. Once the pattern reaches the optimal temperature, precoated sand is injected into the cavity. Once cooled, the shell half is ejected from the metal pattern.
3. Mold Assembly The two shell halves are securely bonded using adhesives or a combination of adhesives and fasteners, creating a shell mold that closely resembles the ceramic shells utilized in the investment casting process.
4. Baking The assembled shell is then cured in an oven at a predetermined temperature and time setting.
5. Sand Filling The shell is positioned in a flask and subjected to vibration on a table. Supported firmly by sand, the shell is prepared for the pouring process.

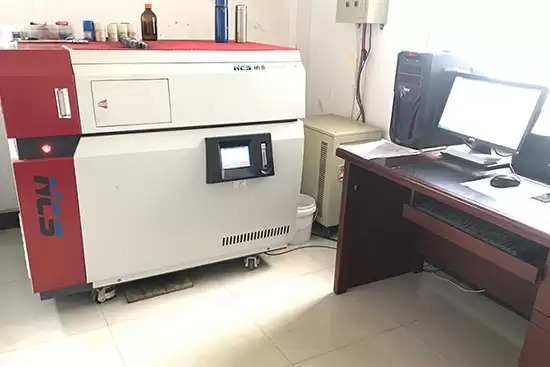

6. Pouring Metal, often steel scrap, is melted in an induction electric furnace, with specific alloys added as necessary. Once the metal reaches a molten state at temperatures between 1530-1580℃, it is poured into the heated shell. The liquid metal flows through the pouring cup, into the central gating system, and fills each mold cavity on the tree. The pre-heated mold facilitates the smooth flow of metal through thin, detailed sections.

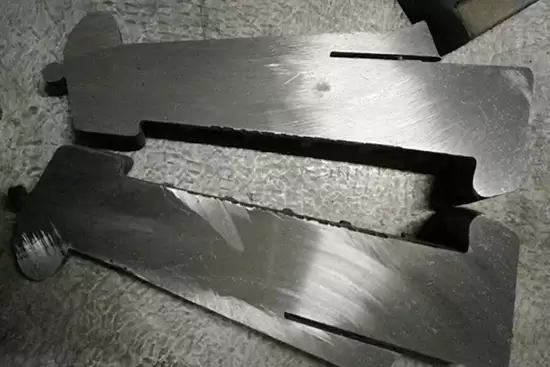

7. Shakeout After the metal has sufficiently cooled and solidified within the shell, the shakeout process begins. This involves vibrating the shell and casting to break the shell apart and remove it. The castings are then sent for sand blasting to eliminate excess sand from their surfaces. Subsequently, the castings are detached from their gating system tree using various methods such as manual impact, sawing, or cutting.

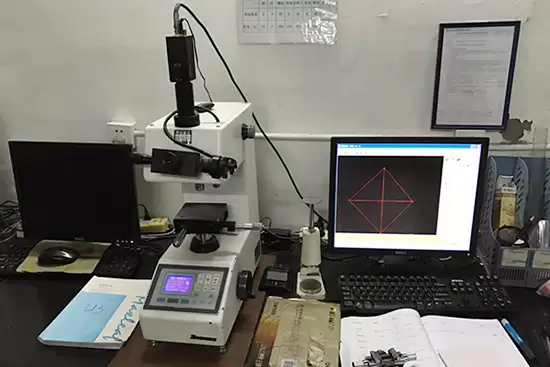

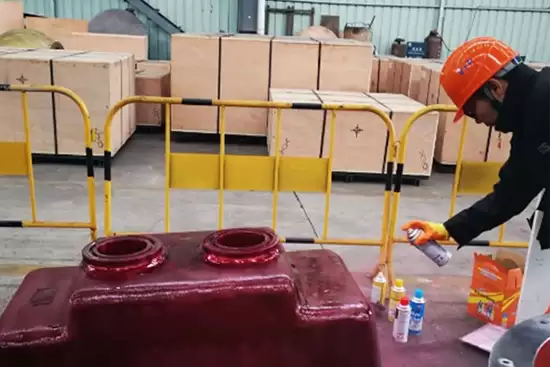

8. Finishing Common finishing operations include grinding, soldering, sand blasting, machining, and straightening to smooth the part at the gates and eliminate imperfections like sand holes, slag eyes, flash burrs, bulging, and deformation. After passing a visual inspection, heat treatment may be applied to harden the final part, depending on the specific casting requirements.
Advantages and Disadvantages of Shell Mold Casting:
Compared to investment casting, shell mold casting differs only in the shell-making process, with the subsequent steps sharing the same production line. Shell molding offers several notable advantages, sometimes making it a preferred alternative to investment casting
1. Precision and Surface Quality Shell mold casting produces castings with high dimensional accuracy and a surface finish that rivals the water glass lost wax process, surpassing other kinds of sand casting methods.
2. Environmental Considerations Shell mold casting is more environmentally friendly in terms of materials and processes used in shell making.
3. Productivity and Cost-Effectiveness Shell mold casting boasts higher productivity and lower costs compared to the water glass lost wax process.
4. Lead Time Reduction The process shortens lead times significantly.
Disadvantages:
1. High Metal Pattern Cost The cost of metal patterns is high, making shell mold casting more suitable for large volume orders.
2. Limitations in Complex Shapes Shell mold casting may not be able to form highly complex shapes effectively.
