Sand Casting

Sand casting, also known as sand molded casting, is a metal casting technique that is defined by its utilization of sand as the core material for molds. This process is renowned for its ability to produce metal components with a high degree of accuracy and detail, leveraging the unique properties of sand to form the mold that shapes the molten metal into the desired final product.

The production of sand castings is a meticulous process that encompasses several key steps, each critical to the final product's quality and precision.

1. Pattern Making: The journey begins with the fabrication of a pattern, which is a detailed replica of the final casting. Patterns are traditionally crafted from materials such as wood, metal, or plastic, ensuring that every contour and detail of the desired product is accurately represented.

2. Mold Making: With the pattern complete, it is positioned within a mold box. Around the pattern, sand is mixed with a binder and compacted to create a robust mold. This mold is then carefully divided, allowing for the removal of the pattern and leaving behind a cavity that mirrors the shape of the intended part

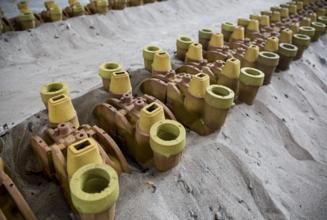

3. Core Making: For castings that require internal cavities, sand cores are meticulously crafted and positioned within the mold cavity. These cores are designed to withstand the heat and pressure of the molten metal, ensuring that the internal features of the casting are accurately formed.

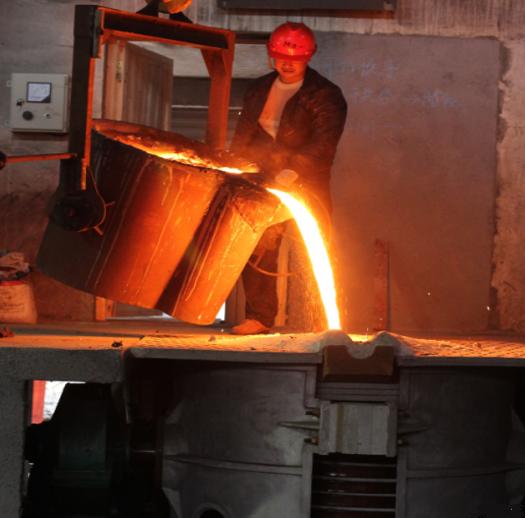

4. Melting and Pouring: The metal, chosen for its specific properties, is heated to its melting point within a furnace. Once molten, it is carefully poured into the mold cavity through a gating system, which is designed to direct the flow of metal and ensure even distribution throughout the mold.

5. Cooling and Solidification: As the molten metal is poured into the mold, it begins to cool and solidify within the confines of the mold. This stage is crucial, as it determines the final shape and integrity of the casting.

6. Mold Removal: Once the metal has fully solidified, the sand mold is broken away to reveal the cast part. This step requires care to ensure that the casting remains undamaged.

7.Sand Casting Finishing: The cast part then undergoes a thorough cleaning process to remove any residual sand or other debris. Any excess material is meticulously removed, and the casting is prepared for further processing or use.

Inspection: Before any machining begins, the casting is inspected for defects such as cracks, porosity, and dimensional inaccuracies. This step is crucial to ensure that the part is sound and within the specified tolerances.

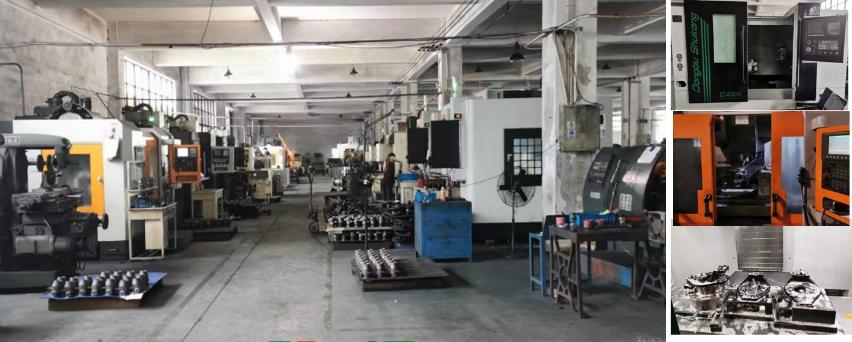

Rough Machining: The initial machining step removes the majority of the excess material to approximate the final shape of the part. This is typically done with larger tools and at higher speeds to quickly reduce the casting's size.

Semi-Finish Machining: After roughing out the part, semi-finish machining is performed to refine the shape further. This step involves using smaller tools and finer cuts to get closer to the final dimensions.

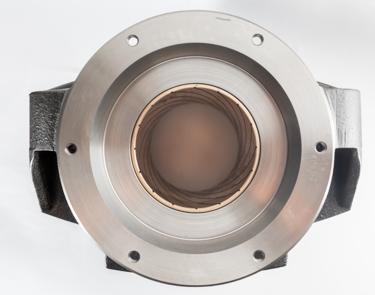

Finish Machining: The final machining step involves achieving the exact dimensions and finishes specified by the engineering drawings. This is where the part is brought to its final size, with close tolerances and smooth surfaces.
