What is Investment Casting and How Does It Work?

When I work with Investment Casting, I see how this process shapes complex metal parts with impressive accuracy. The technique uses a wax pattern coated with ceramic, making it possible to produce intricateinvestment casting partsthat other methods cannot match. Compared to Sand Casting, investment casting offers excellent design freedom, best tolerance control, and a smooth surface finish, as shown below:

I notice that global demand keeps rising, with the market expected to grow from USD 17.92 billion in 2023 to USD 29.83 billion by 2033. Many industries rely on what is Investment Casting Parts, including Carbon Steel Casting and Stainless Steel Investment Casting. As one of the investment casting parts manufacturers, I value the precision and versatility this method brings.

Key Takeaways

• Investment casting allows for the creation of complex metal parts with high precision and a smooth surface finish, making it ideal for industries like aerospace and medical.
• The process involves creating a wax pattern, coating it with a ceramic shell, and then pouring molten metal, which results in parts that often require less machining.
• Investment casting is versatile, allowing the use of various metals and alloys, including stainless steel and superalloys, to meet specific performance needs.
• This method offers significant advantages, such as reduced material waste, lower tooling costs, and the ability to produce intricate shapes in one piece.
• While investment casting has many benefits, it also has limitations, including higher initial costs and longer production cycles compared to other casting methods.

Investment Casting Explained

Definition and Key Features

When I work with investment casting, I see a process that stands out for its ability to create complex shapes and fine details. I start by making a wax pattern that matches the final part. Then, I coat this pattern with a ceramic shell. After removing the wax, I pour molten metal into the shell to form the part. This method lets me produce parts with thin walls, sharp corners, and intricate features that other casting methods cannot match.

Some of the main features I notice include:

• I can achieve complex geometries and thin walls, which gives me great design freedom.
• The process delivers high dimensional accuracy and repeatability, especially when I use consistent patterns.
• I can use a wide range of materials, including many metals and alloys.
• I often combine several components into a single cast, which saves assembly time.
• Tooling costs stay lower than with die casting, and I waste less material because I can reuse feed and sprue parts.
• I need less post-processing compared to sand casting, which saves time and effort.

I have also seen how rapid prototyping has improved investment casting. With new technology, I can make wax patterns faster and more accurately. This helps me deliver better results for my customers.

Precision and Surface Finish

I rely on investment casting when I need high precision. For small parts under six inches, I can achieve accuracy within ±0.003 inches. This level of precision is about 50% better than what I get with sand casting. Because of this, I spend less time machining the finished parts—sometimes up to 70% less. The process works well for both simple and complex parts, and I can meet tight tolerances for industries like aerospace and medical devices.

The surface finish I get from investment casting is another big advantage. The ceramic shell creates a smooth surface, often reaching 125 Ra as cast. This means I rarely need to do much machining after casting. The fine slurry material used in the shell helps me achieve this smoothness. I find that investment casting produces a better surface finish than sand casting and is often comparable to die casting.

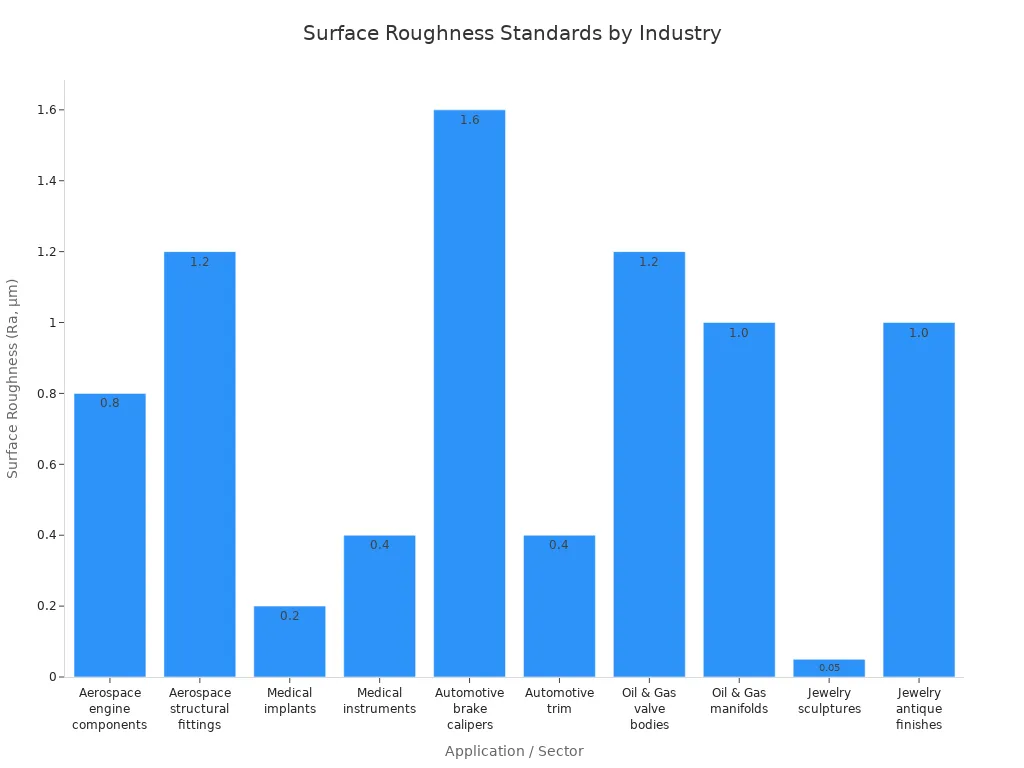

Here is a table that shows how surface finish quality compares across different casting methods:

Different industries have their own standards for surface roughness. For example, aerospace parts often require Ra values of 0.8 µm or less, while medical devices may need even smoother finishes. Automotive and oil & gas industries also set strict requirements for surface quality. I always pay close attention to these standards to make sure my parts meet customer needs.

By using investment casting, I can deliver parts with excellent accuracy and a high-quality surface finish. This makes the process ideal for industries that demand both precision and reliability.

Investment Casting Process Step-by-Step

Wax Pattern Creation

When I begin the investment casting process, I always start with the wax pattern. This step is crucial because the final metal part will mirror every detail of the wax model. I use metal molds to shape the wax, and I apply a release agent to make sure the wax comes out cleanly. I inject the wax into the mold using precise machines that control temperature and pressure. This helps me fill even the smallest cavities and avoid defects.

I often choose from several types of wax, depending on the part's requirements:

• Filled pattern wax
• Non-filled pattern wax
• Runner wax
• Sticky wax
• Water-soluble wax

Each type of wax offers unique benefits. For example, filled pattern wax gives me better dimensional stability, while sticky wax helps me assemble complex wax trees.

To ensure quality, I follow strict control measures:

• I select wax with low shrinkage and good flow.
• I keep the environment stable, controlling temperature and humidity.
• I calibrate my injection equipment regularly.
• I inspect each pattern for surface flaws.
• I sometimes use X-ray or ultrasonic testing to check for hidden defects.

Tip: I always use CAD software to design my patterns. This helps me account for any shrinkage or expansion during the process.

After creating individual wax patterns, I assemble them onto a central wax rod, forming what I call a "wax tree." This assembly allows me to cast multiple parts at once, improving efficiency.

Ceramic Shell Building

Once I finish the wax tree, I move on to building the ceramic shell. This step protects the wax pattern and forms the mold for the molten metal. I dip the entire wax assembly into a ceramic slurry made from fine mesh refractory filler and a colloidal binder. After dipping, I sprinkle coarse refractory stucco over the wet surface. I let each layer dry before repeating the process.

I usually build up several layers, each one adding strength and thickness to the shell. The layered structure is important. It gives the shell the ability to withstand the high temperatures of molten metal and maintain its shape.

The thickness of the ceramic shell matters a lot. Here is a table that shows how shell thickness affects casting quality:

I always pay close attention to the shell-building process. If I make the shell too thick or too thin, I risk defects in the final part.

Wax Removal (Lost-Wax Process)

After the ceramic shell dries, I need to remove the wax. This is the "lost-wax" part of investment casting. I place the shell in a steam autoclave or a furnace. The heat melts the wax, which drains out and leaves a hollow ceramic mold. Sometimes, I pour molten wax into the mold and swirl it around to create a thin, even coating. Other times, I fill the mold completely for thicker patterns.

I can reuse the metal molds for making more wax patterns, which helps me keep costs down. However, I must manage the environmental impact. The wax removal process uses a lot of energy, which increases greenhouse gas emissions. I also generate waste from the ceramic shell and leftover wax, so I always look for ways to recycle materials and reduce my environmental footprint.

Note: The investment casting process takes longer than other methods like die casting. The extra steps, such as wax pattern creation and shell building, add time but allow me to achieve complex shapes and tight tolerances.

By carefully following each step, I ensure that every part I produce meets high standards for quality and precision.

Metal Pouring

When I reach the metal pouring stage in investment casting, I know that precision matters most. I heat the metal to the correct temperature for the alloy I am using. For aluminum, I usually pour between 680°C and 780°C (1256°F to 1436°F). I monitor the temperature closely because even small changes can affect the final part.

I pay attention to how I pour the metal. The speed and angle of the pour help me control the flow and reduce turbulence. If I pour too quickly or at the wrong angle, I risk creating defects in the casting. I always check that the mold has proper venting. This lets gases escape and prevents problems like porosity or misruns.

Here are some important factors I consider during metal pouring:

• I optimize the pouring technique to control the speed and angle of metal flow. This minimizes turbulence and ensures the mold fills smoothly.
• I avoid pouring too fast or too slow. Improper pouring speed can lead to defects such as inclusions or incomplete filling.
• I check the temperature before pouring. Incorrect pouring temperature can cause casting defects.
• I make sure the mold vents properly. Inadequate venting can trap gases and create flaws.

By following these steps, I produce castings with fewer defects and better quality. I know that careful metal pouring is essential for successful investment casting.

Mold Removal and Finishing

After the metal cools and solidifies, I remove the ceramic shell to reveal the cast part. I use several methods to break away the investment material. Sometimes I use mechanical divesting, which involves knocking or vibrating the shell off. Other times, I use sandblasting to clean the surface. For stubborn residues, I rely on chemical cleaning, such as pickling.

Once I remove the mold, I focus on finishing the casting. I start with fettling, which transforms the rough, freshly cast metal into a refined component. I remove imperfections and smooth the surfaces. This step is crucial for meeting industry standards and preparing the part for its final use.

I apply different finishing processes depending on the part's requirements. Some of the most common techniques I use include:

1. CNC Milling
2. Turning
3. Drilling
4. Grinding
5. Honing
6. Threading
7. Electrical Discharge Machining (EDM)
8. Broaching
9. Polishing and Deburring

For surface protection or appearance, I sometimes use:

• Hot Dip Galvanizing
• Auto-catalytic Plating
• Vacuum Plating
• Paint Finishing

I aim for a smooth surface finish. Investment castings typically achieve a surface finish around RMS120, which is much smoother than sand molded castings. This high-quality finish makes the parts suitable for demanding applications.

Tip: I always inspect the finished parts to ensure they meet customer specifications and industry standards.

By carefully removing the mold and applying the right finishing processes, I deliver investment castings that perform reliably in their intended applications.

Materials Used in Investment Casting

Metals and Alloys

When I select materials for investment casting, I focus on metals and alloys that offer the right balance of strength, durability, and performance. I often use stainless steels because they resist corrosion and work well in automotive and medical parts. Cast iron, including ductile and gray iron, gives me strength and affordability for heavy-duty applications. Copper alloys, such as brass and bronze, help me create parts that need to resist corrosion, like plumbing and electrical fittings. Superalloys, made from cobalt and nickel, perform well in high-temperature environments, especially in aerospace and energy sectors.

Here are the metals and alloys I use most frequently:

• Stainless Steels
• Carbon Steels
• Low Alloy Steels
• Aluminum Alloys
• Superalloys
• Copper Alloys
• Cast Iron

I rely on each material for its unique properties. Carbon steels are versatile and cost-effective. Low alloy steels provide strong mechanical properties. Aluminum alloys are lightweight and strong, making them ideal for aerospace parts. Superalloys withstand extreme conditions. Copper alloys offer low wear rates and resist corrosion.

Waxes and Ceramics

I pay close attention to the waxes and ceramics I use in investment casting. The properties of wax affect the dimensions and accuracy of the final part. I choose waxes with stable thermophysical and thermomechanical properties to reduce shrinkage and deformation. I use measurement techniques like oscillatory shear and dynamical mechanical analysis to check wax quality.

For ceramics, I select binders and refractory grains that match the metal I plan to cast. Colloidal silica works well as a binder for general metal casting. Colloidal zirconia helps me cast higher alloys and reactive metals, such as titanium. NYACOL® Zirconia Acetate is my choice for titanium casting because it reduces surface defects.

Tip: I always match the wax and ceramic materials to the specific requirements of each project. This helps me achieve the best results in investment casting.

Advantages and Disadvantages of Investment Casting

Benefits of Investment Casting

When I choose Investment Casting for manufacturing, I see many advantages that set it apart from other methods. I can work with a wide range of alloys, which gives me flexibility in material selection. I produce parts that weigh less than an ounce or up to 800 pounds. The process allows me to achieve tight tolerances and create complex shapes with intricate features. I notice that the surface finish is smooth, often reaching an average of 125 micro, which means I spend less time on machining.

Here are some key benefits I experience:

• I use affordable tooling, which helps me keep costs low for smaller production runs.
• I create near-net shape parts, reducing the need for extensive post-casting machining.
• I minimize material waste by closely matching the mold to the final shape.
• I optimize designs, consolidating multiple components into one part.
• I cast several parts at once, increasing throughput and saving time.
• I reuse durable molds, which lowers my tooling expenses.
• I produce intricate shapes in one piece, reducing labor and assembly errors.
• I validate designs quickly with rapid prototyping.
• I maintain high quality and accuracy, which reduces rework and improves efficiency.
• I generate less scrap and rework, leading to lower material and labor costs.

Tip: I always find that improved filtration efficiency enhances metal alloy purity, preventing costly defects and increasing yield.

Limitations and Drawbacks

While I rely on investment casting for many projects, I recognize some limitations that affect its use. The process is more complicated than other casting methods. I need specialized equipment and substantial preparation before I start production. The initial setup can be expensive, which may deter some manufacturers.

I also notice that the production cycle takes longer because mold manufacturing is complex. High design requirements mean that mistakes can lead to failure. Mold durability is limited, so I must replace molds periodically. Size restrictions exist, making it difficult to cast very large parts.

Here are some drawbacks I encounter:

• Higher cost compared to other casting processes.
• Longer production cycle due to complex mold manufacturing.
• High design requirements that can lead to failure if not properly addressed.
• Limited mold durability requiring periodic replacement.
• The process is more complicated than other casting methods.
• Requires substantial preparation and specialized equipment.

Note: I always weigh these limitations against the benefits before deciding if investment casting is the right choice for a project.

Investment Casting Applications and Industry Examples

Aerospace, Automotive, and Oil & Gas

I see how investment casting shapes the future of aerospace, automotive, and oil & gas industries. In aerospace, I rely on this process to produce turbine blades and structural parts that need high strength and low weight. Automotive manufacturers trust investment casting for engine parts, pistons, and gearbox components. Oil & gas companies use it for valve bodies and drilling equipment that must withstand high pressure and corrosion.

I work with many types of components in these fields. For example, I produce cable clamps and landing gear for aerospace. Automotive projects often require fuel valves and brake systems. Oil & gas applications include sensors and pitot probes.

GE Energy uses advanced nickel alloys for turbine blades. This improves efficiency and raises operating temperatures in power generation.

Medical, Mining, and Power Generation

I see investment casting making a difference in medical, mining, and power generation sectors. In medical applications, I use it to create precise surgical instruments and implants. Mining equipment needs robust parts that can handle extreme conditions. Power generation relies on investment casting for gas turbine components that operate at high temperatures.

Ningbo Investment Casting Co., Ltd: Core Business and Products

I specialize in lost-wax casting and silica sol casting processes at Ningbo Investment Casting Co., Ltd. My team manufactures carbon steel, alloy steel, high chromium iron, high manganese steel, and various stainless steels. I serve industries such as agriculture, mining, oil & gas, heavy equipment, automotive, railway, shipbuilding, cement, and power.

I focus on delivering quality-assured products that perform reliably in demanding environments.

I trust Investment Casting when I need to create complex metal parts with high precision. This process gives me accurate results and helps me save material. I use it for many industries, from aerospace to medical. When I want detailed and high-quality components, I choose this method. If you need reliable parts with fine details, consider this process for your next project.

FAQ

What is the main advantage of investment casting?

I achieve complex shapes and fine details with investment casting. This process gives me high accuracy and a smooth surface finish. I often use it when I need parts that other casting methods cannot produce.

Which metals can I use in investment casting?

I work with many metals, including stainless steel, carbon steel, aluminum, and superalloys. I choose the metal based on the part’s requirements, such as strength, corrosion resistance, or weight.

How accurate are investment cast parts?

I can reach tolerances as tight as ±0.003 inches for small parts. This high level of accuracy reduces the need for extra machining and ensures the parts fit perfectly in their final applications.

What industries benefit most from investment casting?

I see investment casting used in aerospace, automotive, oil & gas, medical, mining, and power generation. These industries need reliable, precise, and durable components.
