The Secret to Perfect Parts: What is Precision Investment Casting?
I want to introduce you to precision Investment Casting. This manufacturing process creates highly accurate and complex metal components. It produces intricate shapes with an excellent surface finish and tight dimensional tolerances. This method is crucial for industries that need superior quality parts and minimal post-processing. The global investment casting market was valued at USD 23.01 billion in 2024. Experts project it will grow to USD 31.38 billion by 2032, showing a 6.4% growth rate. This strong growth highlights the demand for Investment Casting for Complex Metal Parts. We areFocusing on Investment Casting to meet these needs, ensuring excellent Process Control Investment Castings. Precision Investment Casting for Complex Metal Par is truly essential.
Key Takeaways
- Precision investment casting makes very exact metal parts. It creates complex shapes with smooth surfaces.
- This method uses a 'lost-wax' process. A wax model is covered with ceramic, then the wax melts away, leaving a mold.
- Investment casting is good for detailed designs. It works with many types of metals, like steel and aluminum.
- This casting method makes parts with better surfaces and more exact sizes than Sand Casting.
- Many important industries use this process. These include aerospace, medical, and automotive for strong and reliable parts.
Understanding Precision Investment Casting
What Defines Precision Casting?
When I talk about precision casting, I mean making metal parts with extreme accuracy. It is like hitting a bullseye every single time. We aim for very tight dimensional tolerances. This means the finished part is almost exactly the size and shape we designed. I want to make sure every detail is perfect. This process gives us consistent quality, which is super important for many industries.
For example, look at the table below. It shows how incredibly precise we can get with Precision Investment Casting for Complex Metal Parts. We can hold very small gaps and maintain excellent flatness.
| Measure (mm) | Normal Tolerances (D1 +/- mm) | Tight Tolerances (D2 +/- mm) |
|---|---|---|
| Gap | ||
| Up to 50 | 0.25 | 0.10 |
| 50 - 130 | 0.50 | 0.30 |
| 130 - 255 | 1.00 | 0.50 |
| 255 - 380 | 1.56 | 0.90 |
| Flatness, Linearity, Steepness, Parallelism | ||
| Up to 50 | 0.25 | 0.13 |
| 50 - 130 | 0.75 | 0.25 |
| 130 - 255 | 1.25 | 0.50 |
| 255 - 380 | 2.00 | 0.90 |
| Angle | 1° | 0.5° |
This table shows you the exact numbers. It helps you see how small the differences are. We can achieve these tight tolerances consistently. This is a key reason why many choose Investment Casting for Complex Metal Parts.

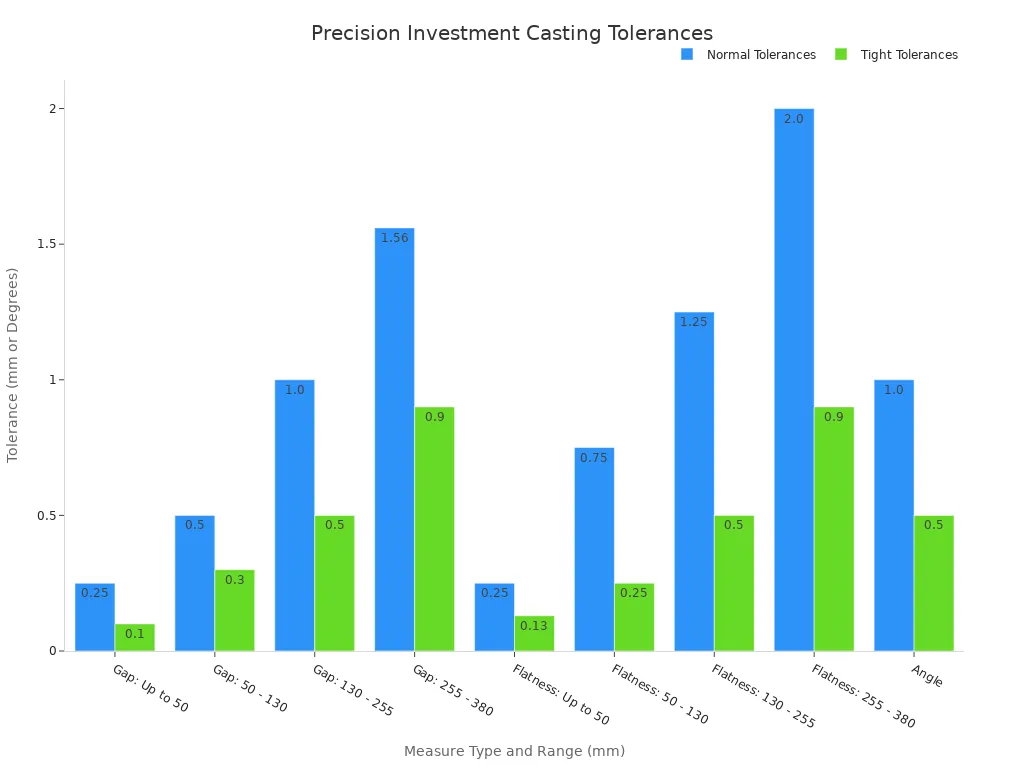

The chart above visually explains these tolerances. It makes it easy to compare normal versus tight tolerances. This level of control is what truly defines precision casting. It means we deliver parts that fit perfectly and work flawlessly.
Key Characteristics of Precision Parts
Precision parts have several important features. First, they have an excellent surface finish. This means the part comes out smooth and clean. It often needs very little extra work, like sanding or polishing. This saves time and money in the long run. I find this to be a huge benefit for our customers.
Second, precision parts can have incredibly intricate details. We can create very complex shapes and fine features. Imagine tiny holes or thin walls. This process handles them with ease. For example, look at the table below. It shows the maximum length we can achieve for different hole diameters. This highlights the fine details possible with Process Control Investment Castings.
| Hole Diameter (d) mm | Max Length for Open Hole | Max Length for Blind Hole |
|---|---|---|
| 2 – 4 | 1 x d | 0.5 x d |
| 4 – 6 | 2 x d | 1 x d |
| 6 – 10 | 3 x d | 1.6 x d |
| 10 - | 4 x d | 2 x d |
This table demonstrates our ability to cast small, deep holes. This is crucial for many advanced applications. We can make parts with features that other methods simply cannot.
Third, precision parts are strong and reliable. Because of the way we make them, they have a uniform internal structure. This means fewer weak spots. I always ensure our parts meet the highest standards for strength and durability. This makes them ideal for critical applications where failure is not an option. These characteristics make Investment Casting for Complex Metal Parts a top choice for demanding industries.
The "Investment" in Casting: The Lost-Wax Process
Why is it Called "Investment"?
I often get asked why we call this process "investment casting." The name sounds a bit like putting money into something, but it actually comes from an older meaning of the word "invest." In this context, "invest" means to surround or envelop something. Think of it like dressing something up or putting a protective layer around it.
In our process, we "invest" a wax pattern by surrounding it with a ceramic material. We build a strong, hard shell around the wax. This shell becomes the mold for our metal part. So, the name perfectly describes this key step where we coat the wax pattern. It is a very precise way to create the mold.
Step-by-Step Investment Casting for Complex Metal Parts
I want to walk you through the amazing journey of how we make a metal part using the lost-wax process. It is a series of careful steps that lead to those perfect parts.
-
Creating the Wax Pattern: First, we need a perfect model of the part we want to make. We create this model from wax. We inject molten wax into a master die, which is a metal mold of the final part. We use high-quality technical wax for these patterns. This wax has a very constant shrinkage ratio, which means it shrinks predictably as it cools. This helps us control the final size of the metal part. For parts with tricky internal shapes, like hollow sections, I use a special soluble wax for core wax injection molds. We inject this core wax first. Then, we inject the main pattern wax around it. Later, we dissolve this core wax away. This leaves the complex internal geometry exactly as we designed it.
-
Assembling the Tree: Once we have many individual wax patterns, I attach them to a central wax stick. We call this central stick a "sprue." The whole assembly looks like a small tree with branches, and the patterns are like the leaves or fruit. This "tree" allows us to cast many parts at once.
-
Building the Ceramic Shell (Investing): This is where the "investment" part truly happens. I dip the entire wax tree into a liquid ceramic mixture, called a slurry. This slurry coats every detail of the wax pattern. Then, I sprinkle fine sand onto the wet ceramic. This sand sticks to the slurry. I let this layer dry. I repeat this dipping and sanding process many times, building up several layers. Each layer makes the ceramic shell stronger and thicker. It becomes a very robust mold.
-
Dewaxing (Losing the Wax): After the ceramic shell is completely dry and strong, I place it into a furnace. The heat melts the wax inside the shell. The molten wax drains out, leaving an empty cavity. This is why we call it the "lost-wax" process. The wax is gone, but its perfect shape remains as a hollow space inside the ceramic mold.
-
Pouring the Metal: Now, I preheat the empty ceramic mold to a very high temperature. This helps the molten metal flow smoothly and prevents the mold from cracking. Then, I pour molten metal, like steel or aluminum, into the hot mold. The metal fills every tiny detail of the cavity.
-
Cooling and Solidifying: I let the molten metal cool down inside the mold. As it cools, it solidifies and takes the exact shape of the original wax pattern.
-
Knocking Out the Shell: Once the metal is solid and cool, I break away the ceramic shell. I often use hammers or vibration to remove the ceramic. This reveals the metal casting tree.
-
Cutting Off the Parts: I carefully cut the individual metal parts from the central sprue. Now, we have our raw castings.
-
Finishing Touches: Finally, the parts might need some extra work. I might grind away any small bumps, blast them with abrasive material to clean the surface, or heat-treat them to make them stronger. This entire process ensures we get high-quality Investment Casting for Complex Metal Parts.
Why Choose Investment Casting for Complex Metal Parts?
Advantages for Intricate Designs
I find investment casting truly shines when we need intricate designs. This method allows me to create very complex shapes. Other casting methods often struggle with these designs. I can make parts with thin walls, down to 0.5mm. This is true even for very complex shapes. Traditional casting methods find this difficult. This precision means I can design parts with features that fit perfectly. It also means I can combine many small parts into one larger, more complex piece. This saves assembly time. It also makes the final product stronger. I can even produce very large parts. Some investment castings can weigh up to 1140 kg. This shows the wide range of sizes we can handle.
Superior Surface Finish and Detail
Another great benefit is the superior surface finish. Parts come out of the mold very smooth. They often need little to no extra work. This saves a lot of time and money. I do not need to spend hours sanding or polishing. The process captures every tiny detail from the wax pattern. This means sharp edges and fine textures are possible. This level of detail is important for parts that need to look good. It is also important for parts that need to fit together very precisely. This makes Investment Casting for Complex Metal Parts a top choice.
Versatility in Materials
I also love the versatility in materials. Investment casting works with many different metals. I can use steel, stainless steel, and bronze alloys. Aluminum alloys and super alloys are also options. More specifically, I can cast carbon steel, alloy steel, and high chromium iron. High manganese steel, heat-resistance stainless steel, and general stainless steel are also possible. This wide choice means I can pick the best material for each part's job. For example, I can make a strong part for an airplane. Or I can make a corrosion-resistant part for a medical device. For horizontal vacuum furnaces, I can cast parts up to 25 kg. This material flexibility helps me meet many different industry needs. This is why I often recommend Investment Casting for Complex Metal Parts.
Investment Casting Compared to Other Methods
I often compare investment casting with other common methods. This helps me show why it is the best choice for certain parts. Each method has its own strengths.
Investment Casting vs. Sand Casting
Sand casting is a very old and common way to make metal parts. I use sand to create the mold. It is good for large, simple parts. However, sand casting does not offer the same precision as investment casting. I find that sand cast parts have rougher surfaces. Look at this table:
| Casting Type | Ra (µm) Range |
|---|---|
| Investment Casting | 1.6 (N7) to 6.30 (N9) |
| Sand Casting | 12.5 (N10) to 50 (N12) |
This table shows investment casting gives a much smoother finish. Sand casting also has wider dimensional tolerances. This means the parts are not as exact in size. Investment casting offers higher accuracy. For linear dimensions, I use a casting tolerance table like CT8 according to ISO 8062. This ensures very precise parts. This makes Precision Investment Casting for Complex Metal Parts ideal when accuracy matters most.
Investment Casting vs. Die Casting
Die casting uses metal molds. It is very fast. I use it for making many parts quickly. High-pressure die casting can produce parts in large quantities. This lowers the cost per unit. It is great for industries needing high production volumes, like automotive parts. Aluminum die casting is very cost-effective for high volumes. However, die casting molds are expensive to make. They are also less flexible for complex shapes. Investment casting allows me to create much more intricate designs. I can make parts with undercuts and fine details that die casting cannot.
Investment Casting vs. Permanent Mold Casting
Permanent mold casting also uses metal molds. I can reuse these molds many times. This makes it good for medium to high production runs. The metal molds help the parts cool faster. This can make the metal structure finer. However, permanent molds are not as good for complex shapes. Investment casting, also known as the "lost-wax technique," is perfect for creating parts with smooth surfaces. I produce a wax model, coat it with ceramic, and then melt away the wax. This leaves a ceramic shell mold with extremely precise details. This process is ideal for intricate, small, and smooth-surfaced components. Industries like aerospace and defense often choose it.
Real-World Applications of Precision Investment Casting
I see precision investment casting used in many important industries. Its ability to create perfect parts makes it essential for critical applications.
Aerospace and Defense Components
In aerospace and defense, parts must be incredibly strong and reliable. I know that even a small flaw can have serious consequences. That is why I often see investment casting used for jet engine components. It is also used for structural parts in aircraft and missiles. These parts need to withstand extreme temperatures and pressures. The precision of investment casting ensures these components fit perfectly. It also ensures they perform flawlessly under tough conditions. This method helps create lightweight yet durable parts. This is very important for fuel efficiency and performance.
Medical and Dental Devices
I also find investment casting crucial for medical and dental devices. These parts need to be very precise and safe for human use. We use high-grade materials for cast parts in medical applications. I choose these materials for their resistance to corrosion. They also withstand repeated sterilization. This ensures long-lasting performance. I often work with ferrous alloys, pig iron, and sphero. Non-ferrous alloys, super alloys, and implant alloys are also common choices. These materials help create surgical instruments, prosthetics, and dental implants. The smooth surface finish and intricate details are vital for these sensitive applications.
Automotive and Industrial Machinery
For automotive and industrial machinery, investment casting provides strong and complex parts. I see it used for many different components. For agricultural equipment, I cast chisel plow sweeps and knife blades. Tillage points and other custom parts are also common. In the oil and gas fields, I make downhole cable protectors. Mining equipment benefits from augers, section links, and link chains. I also produce grate bars and grate plates for mineral processing. For heavy equipment like excavators and bulldozers, I cast teeth and adapters. Crusher and shredder parts, railway parts, and hydraulic cylinder heads are also made this way. I also create pump and valve parts. This shows how versatile Investment Casting for Complex Metal Parts is across many sectors.
I see precision investment casting as a vital way to make complex, high-quality metal parts. Its special process gives us great accuracy, smooth surfaces, and freedom in design. This method remains key for industries that need top-performing parts. Investment Casting for Complex Metal Parts truly delivers on these high standards.
