Lost-Wax Casting vs. 3D Printed Molds: Cost & Quality Comparison
Lost-Wax Casting, also known as Investment Casting, is a traditional manufacturing process that creates highly detailed and precise parts by pouring molten material into a mold formed from a wax model. In contrast, 3D printed molds utilize additive manufacturing techniques to build molds layer by layer, offering flexibility and rapid prototyping capabilities.
The cost and quality differences between these methods are significant. Lost-Wax Casting excels in producing intricate designs with exceptional accuracy, though it involves higher labor costs due to manual processes. On the other hand, 3D printed molds are more cost-effective for prototyping but may face challenges in heat transfer, leading to longer production cycles.
Selecting the right method depends on project-specific factors such as production volume, material requirements, and budget. Understanding these differences ensures optimal results for both cost and quality.
Key Takeaways
- Lost-Wax Casting works well for making many items cheaply.
- 3D printed molds are faster, cutting wait times to days.
- Use Lost-Wax Casting for detailed, strong designs like in jewelry.
- 3D printed molds are flexible, great for small batches or changes.
- Think about your project to pick the best method for you.
Understanding Lost-Wax Casting and 3D Printed Molds
Overview of Lost-Wax Casting
Lost-Wax Casting, also known as investment casting, is a time-tested manufacturing process that dates back to the late 5th millennium BC. This method involves creating a wax model, encasing it in a ceramic shell, and then melting the wax to leave a cavity for molten metal. The process is renowned for its ability to produce intricate and precise parts, making it indispensable in industries such as aerospace, automotive, and jewelry.
Investment casting has been used for millennia. This process involves creating a wax pattern, hardening it, vaporizing the wax, and then filling the resulting mold with molten metal. This complex multi-step process is essential in various industries for producing intricate parts.
The historical evolution of this technique highlights its adaptability. For example, during the Classical period, artisans developed methods to create life-size statues using wax patterns. Today, Lost-Wax Casting continues to thrive due to its reliability and high-quality output.
Overview of 3D Printed Molds
3D printed molds represent a modern approach to mold-making, leveraging additive manufacturing technology. These molds are created layer by layer using materials like wax filaments or resins. This method offers unparalleled flexibility, allowing designers to produce complex geometries and iterate designs rapidly.
- Reduced Lead Time: 3D printing significantly shortens production cycles, reducing lead times from weeks to hours.
- Cost Savings: The additive process minimizes material waste, making it cost-effective for low-volume production.
- Enhanced Precision: Advanced printers achieve tight tolerances and superior surface finishes.
For industries requiring quick prototyping or small-batch production, 3D printed molds provide a practical and innovative solution.
Key Differences in Manufacturing Processes
The manufacturing processes of Lost-Wax Casting and 3D printed molds differ significantly in complexity, scalability, and application.
| Feature | Lost-Wax Casting | 3D Printed Molds |
|---|---|---|
| Material | Natural or synthetic waxes | Wax filaments designed for 3D printing |
| Process | Multi-step investment casting | Direct printing of molds |
| Detail Level | High detail due to wax patterns | Varies based on printer resolution |
| Production Volume | Ideal for large series production | More suitable for low to medium volumes |
| Cost Efficiency | Lower tooling costs for simpler designs | Higher initial costs for complex geometries |
Lost-Wax Casting excels in producing intricate designs for large-scale production, while 3D printed molds shine in rapid prototyping and low-volume manufacturing. Each method serves distinct purposes, making the choice highly project-dependent.
Cost Analysis
Initial Tooling and Setup Costs
The initial tooling and setup costs vary significantly between Lost-Wax Casting and 3D printed molds. Lost-Wax Casting requires creating wax patterns and ceramic molds, which involves higher upfront investment in tooling. However, this cost becomes more economical for large production runs due to the reusability of molds.
In contrast, 3D printed molds eliminate the need for traditional tooling, reducing initial costs for low-volume production. Additive manufacturing technologies like SLS (Selective Laser Sintering) and MJF (Multi Jet Fusion) offer cost-effective solutions for prototyping and small batches. The following table highlights the cost differences across various methods:

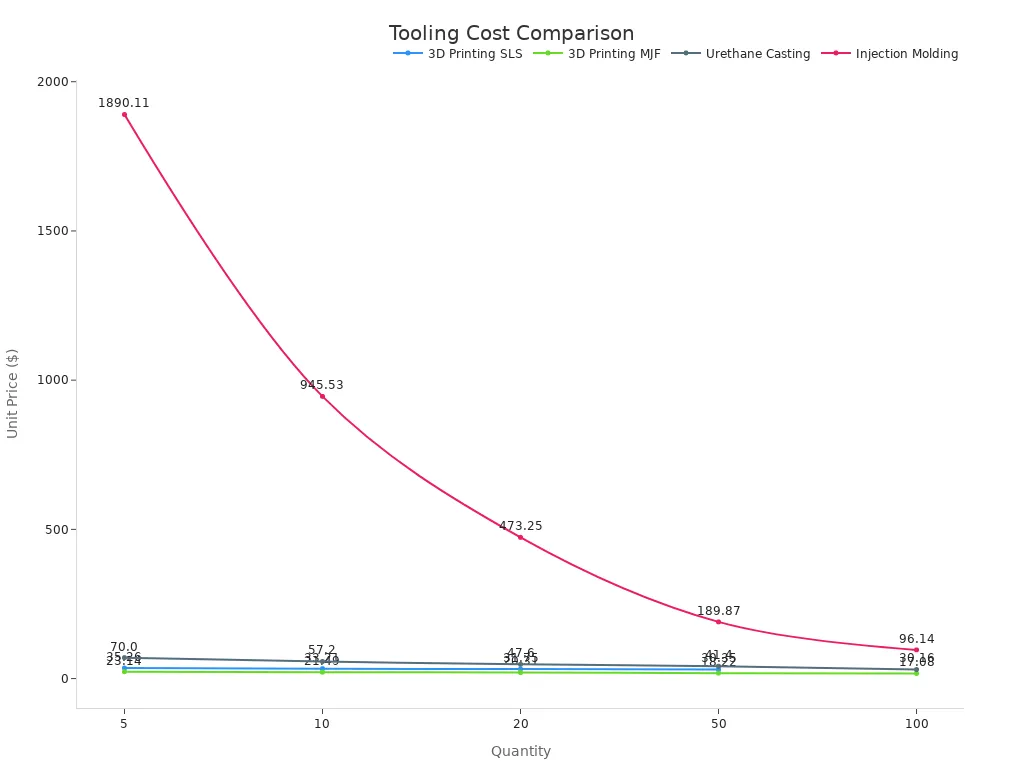

| Manufacturing Method | Quantity | Unit Price | Lead Time |
|---|---|---|---|
| 3D Printing - SLS | 5 | $35.26 | 3 days |
| 3D Printing - MJF | 5 | $23.14 | 3 days |
| Lost-Wax Casting (Urethane) | 5 | $70.00 | 8 days |
| Injection Molding - Single Cavity | 5 | $1890.11 | 30 days |
Production Volume and Scalability
Lost-Wax Casting excels in high-volume production due to its efficiency and lower per-unit costs as production scales. The process is particularly advantageous for simpler geometries, where the break-even point is reached quickly. For example, a single cavity mold in Lost-Wax Casting becomes cost-effective for quantities exceeding 500 units.
3D printed molds, on the other hand, are ideal for low to medium production volumes. Their ability to produce patterns and core boxes rapidly allows manufacturers to adapt to design changes with minimal delays. This flexibility supports faster delivery of metal parts, making it a preferred choice for prototyping and small-batch manufacturing.
- Lost-Wax Casting: Preferred for high-volume production due to cost efficiency.
- 3D Printed Molds: Best suited for rapid prototyping and low-volume runs.
Material Costs and Availability
Material costs and availability also influence the choice between Lost-Wax Casting and 3D printed molds. Lost-Wax Casting generally offers lower part costs for large quantities, as the process efficiently utilizes raw materials like wax and ceramics. However, it requires an initial investment in tooling, which can be a barrier for smaller projects.
3D printed molds, while offering design flexibility, often incur higher material costs, especially for complex geometries. Materials like PMMA (polymethyl methacrylate) used in 3D printing can be expensive and may limit scalability. The table below summarizes the material cost comparison:
| Process Type | Cost Comparison | Raw Material Availability |
|---|---|---|
| Lost-Wax Casting | Lower part cost for large quantities | Requires initial tooling investment |
| 3D Printed Mold Fabrication | Higher costs for complex geometries | Limited by design complexity and material properties |
Quality Comparison
Precision and Dimensional Accuracy
Precision and dimensional accuracy are critical factors in manufacturing. Lost-Wax Casting provides reliable results but faces limitations due to the manual nature of its process. In contrast, 3D printed molds, particularly those created using Selective Laser Sintering (SLS), demonstrate superior accuracy. This makes them ideal for applications requiring intricate details.
The table below highlights the precision levels of various manufacturing methods:
| Manufacturing Method | Precision and Dimensional Accuracy | Source |
|---|---|---|
| Selective Laser Sintering (SLS) | Exhibited superior accuracy compared to conventional lost wax and CNC milling techniques | Ali Majeed Z, Hasan Jasim H. Cureus. 2023 |
| Conventional Lost-Wax Casting | Lower accuracy due to inherent limitations | Alghauli M, Alqutaibi AY, Wille S, Kern M. J Dent. 2024 |
| CNC Milling | Less accurate than SLS, particularly in producing delicate parts | Tasaka A, Kato Y, Odaka K. Int J Prosthodont. 2019 |
This comparison underscores the advantages of 3D printing for precision-critical projects.
Surface Finish and Aesthetic Quality
Surface finish plays a vital role in the aesthetic and functional quality of manufactured parts. Lost-Wax Casting excels in producing smooth surfaces, making it a preferred choice for industries like jewelry and aerospace. However, 3D printed molds offer flexibility in achieving intricate designs, though they may face challenges in heat transfer, which can affect surface quality.
- Thermoplastic materials like PLA provide excellent finishes and detail reproduction, making them suitable for high-quality mold production.
- Water-soluble PVA filaments, while innovative, often result in altered surfaces and loss of detail.
- Heat-resistant materials improve outcomes for 3D printed molds, enhancing both surface finish and durability.
These insights highlight the importance of material selection in achieving optimal surface quality.
Material Compatibility and Strength
Material compatibility determines the range of applications for each method. Lost-Wax Casting supports a wide variety of metals, including steel, aluminum, and titanium, offering exceptional strength and durability. This versatility makes it suitable for high-stress environments.
3D printed molds, while versatile in design, are limited by the properties of the materials used in the printing process. For instance, thermoplastics like PLA and PMMA provide adequate strength for prototyping but may not withstand high temperatures or pressures. Manufacturers often recommend using advanced materials like carbon-fiber-reinforced filaments to enhance strength and compatibility.
By understanding these material constraints, manufacturers can select the most appropriate method for their specific needs.
Advantages and Limitations of Each Method
Benefits of Lost-Wax Casting
Lost-Wax Casting offers several advantages that make it a preferred choice for many industries. Its ability to produce parts with high dimensional accuracy and excellent surface finishes ensures superior quality. This method supports a wide range of materials, including metals like steel, aluminum, and titanium, making it versatile for various applications.
- Cost Efficiency in Large Volumes: As production scales, the cost per unit decreases significantly. Traditional Metal Casting becomes more economical when producing large quantities.
- Reliability: The process has been refined over centuries, ensuring consistent results for intricate designs.
- Material Versatility: Lost-Wax Casting accommodates multiple material options, enabling manufacturers to meet specific strength and durability requirements.
For industries requiring high precision and durability, such as aerospace and automotive, this method remains indispensable.
Benefits of 3D Printed Molds
3D printed molds bring modern innovation to manufacturing, offering unique benefits that cater to specific needs.
- Fast Validation: Designers can quickly validate prototypes, identifying flaws early in the production process.
- Shortened Lead Times: Molds can be produced in days, significantly reducing the time required compared to traditional methods.
- Cost-Effectiveness: By minimizing material waste and labor costs, 3D printing becomes an economical solution for small and medium enterprises (SMEs).
- Design Flexibility: Complex geometries and intricate designs are achievable, which traditional methods may struggle to replicate.
These advantages make 3D printed molds ideal for prototyping, small-batch production, and projects requiring rapid iterations.
Drawbacks of Lost-Wax Casting
Despite its strengths, Lost-Wax Casting has limitations that may affect its suitability for certain projects.
- Longer Lead Times: The multi-step process can take weeks or even months to deliver finished castings, delaying production schedules.
- Higher Initial Costs: Tooling and setup costs can be significant, especially for smaller production runs or complex designs.
- Labor-Intensive Process: The manual nature of the process increases labor costs and may introduce variability in quality.
These drawbacks highlight the importance of evaluating project requirements before selecting this method.
Drawbacks of 3D Printed Molds
While 3D printed molds offer flexibility and rapid prototyping capabilities, they come with notable limitations that may impact their suitability for certain applications. These drawbacks stem from material constraints, durability issues, and production challenges.
One significant limitation lies in the mechanical properties of 3D printing materials. Many of these materials lack the strength and heat resistance required for high-temperature or high-pressure molding applications. This restricts their use in industries where molds must endure extreme conditions.
Another challenge involves surface finish. Although advanced 3D printers can achieve tight tolerances, post-processing is often necessary to meet specific aesthetic or functional requirements. The level of post-processing varies depending on the printing method, which can increase production time and costs.
Durability also poses a concern. Compared to traditional machined metal molds, 3D-printed molds have a shorter lifespan, particularly in high-volume production scenarios. This limitation makes them less suitable for projects requiring repeated use over extended periods.
Additionally, the size of the mold is constrained by the build volume of the 3D printer. Larger molds may require assembly from multiple sections, which introduces additional steps like joining and post-processing. These extra steps can lead to increased lead times and higher costs.
The table below summarizes these challenges:
| Challenge | Description |
|---|---|
| Material Properties | The mechanical properties of 3D printing materials may not be suitable for high-temperature or high-pressure molding applications. |
| Surface Finish | Post-processing may be necessary to achieve the desired surface finish, with different 3D printing methods requiring varying levels of post-processing. |
| Mold Durability | 3D-printed molds may not last as long as machined metal molds, especially for high-volume production. |
| Size Limitations | The size of the 3D printer can limit the mold size, potentially increasing lead times and costs due to the need for joining and post-processing larger sections. |
These limitations highlight the importance of evaluating project requirements carefully before choosing 3D printed molds. While they excel in design flexibility and prototyping, their drawbacks may outweigh their benefits in demanding or large-scale applications.
Applications and Recommendations
Ideal Use Cases for Lost-Wax Casting
Lost-Wax Casting is a versatile manufacturing method with applications across various industries. Its ability to produce intricate designs with high precision makes it ideal for creating components that demand exceptional detail and durability.
- Jewelry Production: This method is widely used to craft small, detailed pieces such as rings and pendants, ensuring a flawless finish.
- Aerospace Components: The process supports the production of lightweight yet strong parts, essential for aircraft and spacecraft.
- Industrial Machinery: Lost-Wax Casting is effective for manufacturing large, complex components like turbine blades and pump housings.
The reliability of this technique, proven over centuries, ensures consistent results for both small-scale and large-scale production. Its adaptability to various materials, including metals like titanium and steel, further enhances its appeal for high-stress applications.
Ideal Use Cases for 3D Printed Molds
3D printed molds excel in scenarios requiring rapid prototyping, design flexibility, and cost efficiency. Their ability to produce molds quickly and with minimal waste makes them a preferred choice for modern manufacturing.
- Prototyping: Designers can validate intricate designs and identify flaws early in the production process.
- Injection Molding: 3D printed molds enable the creation of high-precision plastic parts with minimal post-processing.
- Freeform Injection Molding: This innovative approach uses soluble tools for rapid iteration with final-grade materials.
Industries such as jewelry and consumer goods benefit significantly from the reduced lead times and cost savings offered by 3D printed molds. For example, jewelry manufacturers use this method to achieve fine details and high surface quality in their designs.
Industry Examples and Practical Applications
The practical applications of these manufacturing techniques demonstrate their effectiveness in meeting diverse industry needs.
| Manufacturing Technique | Application Description |
|---|---|
| Lost-Wax Casting | Used to create intricate jewelry, aerospace components, and industrial Machinery Parts. |
| 3D Printed Molds | Applied in cast molding, injection molding, and freeform injection molding for rapid prototyping and production. |
| Metal Powder Application (MPA) | Combines milling and cold spray deposition to enhance mold functionality with cooling and embedded sensors. |
These examples highlight the strengths of each method. Lost-Wax Casting remains indispensable for high-precision, durable components, while 3D printed molds offer unmatched flexibility and speed for prototyping and small-batch production.
Both Lost-Wax Casting and 3D printed molds offer unique advantages, making them suitable for different manufacturing needs. Lost-Wax Casting excels in producing intricate designs with high durability, making it ideal for large-scale production. In contrast, 3D printed molds provide rapid prototyping and design flexibility, catering to low-volume or custom projects.
Selecting the right method depends on project-specific factors such as production volume, material requirements, and budget. Manufacturers should evaluate these aspects carefully to achieve the best balance between cost and quality. By aligning the method with application needs, businesses can optimize efficiency and output.
FAQ
What is the primary cost advantage of Lost-Wax Casting?
Lost-Wax Casting becomes cost-effective for large production volumes. Its per-unit cost decreases significantly as quantities increase, making it ideal for high-volume manufacturing. This efficiency stems from the reusability of molds and the scalability of the process.
Can 3D printed molds handle high-temperature materials?
Most 3D printed molds struggle with high-temperature materials due to the limitations of printing materials like PLA or PMMA. However, advanced filaments, such as carbon-fiber-reinforced composites, improve heat resistance for specific applications.
Which method offers better precision for intricate designs?
3D printed molds provide superior precision for intricate designs, especially when using advanced technologies like Selective Laser Sintering (SLS). Lost-Wax Casting also achieves high detail but may face slight variability due to its manual processes.
How do lead times compare between the two methods?
3D printed molds significantly reduce lead times, often producing molds within days. Lost-Wax Casting, with its multi-step process, typically requires weeks to complete, making it less suitable for projects with tight deadlines.
Are both methods suitable for prototyping?
3D printed molds excel in prototyping due to their rapid production and design flexibility. Lost-Wax Casting, while precise, is less practical for prototyping because of its longer lead times and higher initial costs.
