Investment Casting vs. Other Casting Methods: A Comprehensive Comparison
When I think about manufacturing processes, investment casting stands out as a fascinating method. It uses a wax pattern to create a disposable ceramic mold, often referred to as "Precision Casting" or "lost wax casting." This process delivers exceptional dimensional accuracy and surface finish, often eliminating the need for additional machining. For example, it can achieve tolerances as tight as ±0.005 inches and surface finishes as smooth as Ra 125 microinches.
Investment casting vs. other casting methods is an important comparison to make for understanding its unique advantages. It allows me to evaluate factors like accuracy, cost, material versatility, and applications. With the global investment casting market projected to grow from USD 18.16 billion in 2023 to USD 29.48 billion by 2032, I see why this method is gaining popularity. Its ability to produce intricate designs with minimal waste makes it a preferred choice for industries requiring precision and efficiency.
Key Takeaways
- Investment casting is very precise, with tolerances of ±0.005 inches. It works well for detailed designs.
- This process reduces waste by reusing wax and creating near-final shapes. It supports eco-friendly manufacturing.
- Investment casting works with many metals and alloys. It is useful for industries like aerospace and cars.
- For projects needing high accuracy and complex shapes, investment casting is better than sand or gravity casting.
- Think about production size and cost when choosing a method. Investment casting is good for medium to large production, even with higher starting costs.
Overview of Casting Methods
When I explore casting methods, I notice how each technique offers unique advantages for different applications. Let me walk you through three popular methods: sand casting, Die Casting, and shell molding.
Sand Casting
Sand casting stands out as one of the oldest and most versatile methods. It involves pouring molten metal into a sand mold, which can be shaped to fit almost any design. I find this method ideal for large-scale production due to its cost-effectiveness and adaptability. However, the rough surface finish and lower dimensional accuracy make it less suitable for intricate designs.
Here’s a quick comparison of sand casting with other methods:
| Casting Method | Description | Effects on Material Properties |
|---|---|---|
| Sand Casting | Involves pouring molten metal into a sand mold. | Rough surface finish, lower dimensional accuracy, variable mechanical properties. |
| Investment Casting | Uses a wax pattern coated with a ceramic shell. | High-quality surface finish, excellent dimensional accuracy, superior mechanical properties. |
| Die Casting | Forces molten metal into a steel mold under high pressure. | Smooth surface finish, high dimensional accuracy, good mechanical properties. |
I often recommend sand casting for industries like construction and heavy equipment manufacturing, where precision isn’t the top priority.
Die Casting
Die casting impresses me with its ability to produce parts with exceptional dimensional accuracy. This method forces molten metal into a steel mold under high pressure, resulting in smooth surface finishes and consistent mechanical properties. It’s a favorite for mass production, especially in the automotive and electronics industries.
To ensure quality, die casting employs advanced techniques like statistical quality control and continuous monitoring. For example:
- Measurements of sample castings are taken regularly to identify trends.
- Roving inspectors provide ongoing checks during production to maintain compliance with standards.
These measures make die casting a reliable choice for high-volume manufacturing.
Shell Molding
Shell molding combines precision with efficiency. It creates a thin ceramic shell around a pattern, offering high dimensional accuracy and excellent surface finishes. I’ve seen this method excel in producing smaller, intricate components like cylinder heads for automotive engines.
Advantages of shell molding include:
- Low tooling costs due to reusable metal patterns.
- Material versatility, accommodating both ferrous and non-ferrous metals.
- Simplified post-casting operations with an easy shake-out process.
However, I’ve noticed some limitations, such as higher initial investment costs and potential issues with porosity. Despite these challenges, shell molding remains a strong contender for applications requiring precision and durability.
Permanent Mold Casting
Permanent mold casting, in my experience, offers a unique balance between efficiency and quality. This method uses reusable molds, typically made of metal, to produce consistent and durable castings. Unlike sand casting, which relies on disposable molds, permanent mold casting allows for repeated use, making it ideal for medium to high production volumes.
I find this method particularly effective for creating parts with uniform wall thickness and excellent mechanical properties. The process involves preheating the mold, pouring molten metal, and allowing it to solidify. Once the metal cools, I remove the casting and prepare the mold for the next cycle. This repetitive process ensures consistent results across multiple castings.
Tip: Permanent mold casting works best for non-ferrous metals like aluminum, magnesium, and copper alloys. These materials flow easily into the mold, ensuring precise details and smooth finishes.
Here are some key advantages I’ve noticed with permanent mold casting:
- Durability: The reusable molds withstand high temperatures and repeated use.
- Precision: The process delivers better dimensional accuracy than sand casting.
- Efficiency: It reduces waste and shortens production cycles.
However, I’ve also observed some limitations. The initial cost of creating the mold can be high, and the method may not suit complex designs with intricate details. Despite these challenges, permanent mold casting remains a reliable choice for industries like automotive, aerospace, and consumer goods.
| Feature | Permanent Mold Casting | Sand Casting |
|---|---|---|
| Mold Type | Reusable metal mold | Disposable sand mold |
| Dimensional Accuracy | High | Moderate |
| Suitable Materials | Non-ferrous metals | Ferrous and non-ferrous metals |
In my opinion, permanent mold casting strikes a balance between cost and quality, making it a versatile option for many applications.
Investment Casting Process
Wax Pattern Creation
Creating the wax pattern is the first step in investment casting. I use specialized waxes to form the exact shape of the final product. Filled pattern waxes work best for complex designs because they enhance strength and minimize shrinkage during cooling. Non-filled pattern waxes, on the other hand, are cost-effective and easy to recycle.
Here’s a quick comparison of wax types:
| Type of Wax | Description | Applications |
|---|---|---|
| Filled Pattern Wax | Contains additives for enhanced mechanical properties and dimensional control. | Used for large or complex patterns requiring strength. |
| Non-Filled Pattern Wax | Simple formulation without additives, offering good flow properties. | Ideal for general investment casting applications. |
I find that both types deliver exceptional surface quality, ensuring the final casting meets high precision standards.
Tip: For intricate designs, I recommend filled pattern waxes to achieve better rigidity and dimensional accuracy.
Ceramic Mold Formation
Once the wax pattern is ready, I coat it with a ceramic slurry to create the mold. This step involves dipping the wax pattern into the slurry and then applying fine ceramic particles to build a durable shell. The process repeats several times to achieve the desired thickness.
I’ve noticed that ceramic molds offer high repeatability in shapes and dimensions, which is crucial for mass production. Gypsum molds, often used in ceramic manufacturing, keep production costs low and allow for complex shapes without additional joints. However, they deteriorate quickly and require frequent replacement.
Note: The ceramic mold formation step ensures the mold can withstand high temperatures during metal pouring, making it a reliable choice for precision casting.

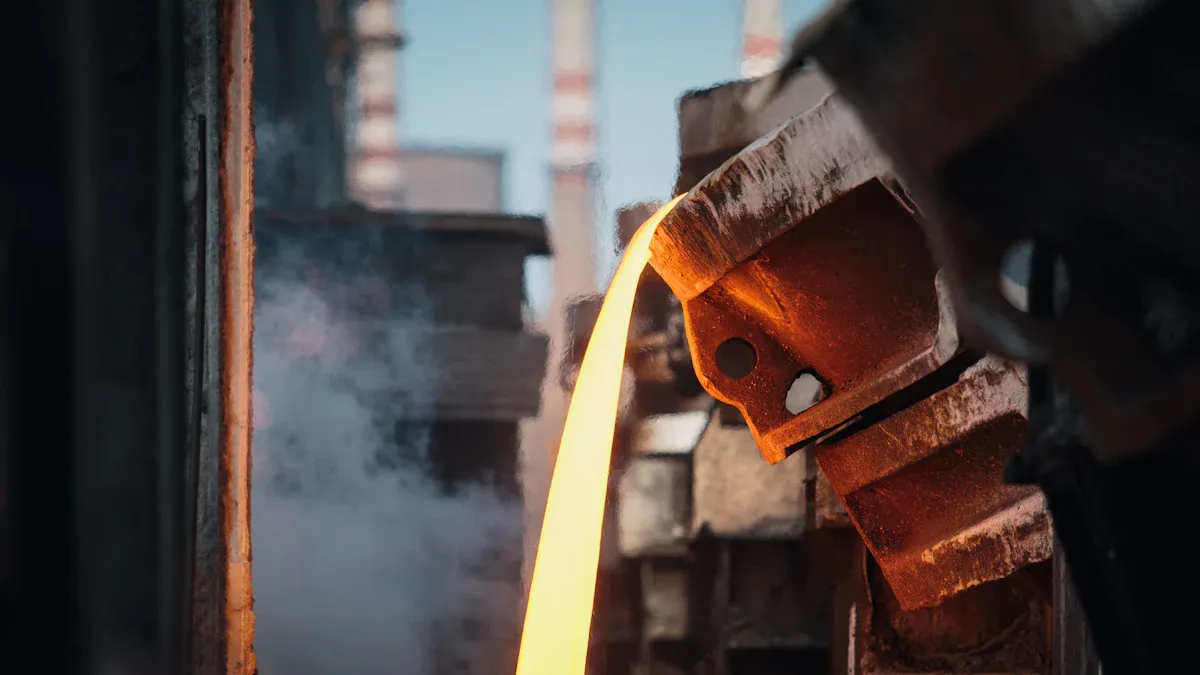

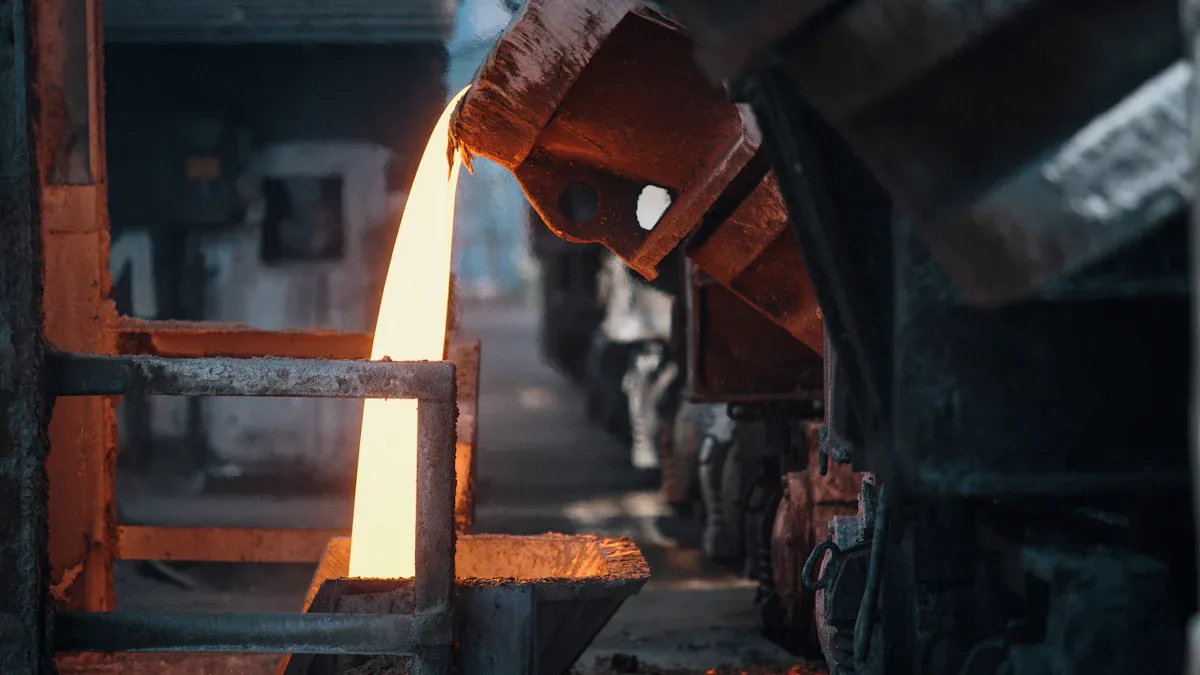

Metal Pouring and Solidification
After the ceramic mold hardens, I pour molten metal into it. The cooling rate plays a vital role in determining the properties of the final casting. Faster cooling rates enhance mechanical strength, while slower rates improve dimensional accuracy.
Here’s how I evaluate the effectiveness of this step:
| Factor | Description |
|---|---|
| Cooling Rate | Essential for determining the properties of the final casting. |
| Dimensional Accuracy | Affects the fit and function of the final product, crucial for quality. |
| Surface Finish | Influences performance by enhancing sealing and reducing friction in mechanical assemblies. |
I’ve found that investment casting excels in achieving smooth surface finishes and precise dimensions, making it ideal for industries requiring high-quality components.
Tip: Monitoring the cooling rate closely ensures consistent results and minimizes defects in the final product.
Mold Removal and Finishing
Once the metal solidifies, I remove the ceramic mold to reveal the casting. This step, known as mold removal, involves breaking the ceramic shell. I typically use mechanical methods like vibration or water blasting to ensure the mold detaches cleanly. These techniques minimize damage to the casting while maintaining its intricate details.
After removing the mold, I focus on finishing the casting. This step refines the surface and ensures the final product meets quality standards. I often use mechanical finishing, such as grinding or polishing, to smooth out rough edges and improve dimensional accuracy. For components exposed to harsh environments, I apply chemical finishing. This process enhances corrosion resistance and prepares the surface for coatings or adhesives. In some cases, I use thermal finishing to modify the casting's microstructure, improving its mechanical properties.
Here’s a breakdown of how each finishing process impacts efficiency and quality:
| Finishing Process | Impact on Efficiency and Quality |
|---|---|
| Mechanical Finishing | Improves surface smoothness and dimensional accuracy, preparing surfaces for further treatments. |
| Chemical Finishing | Enhances corrosion resistance and adhesion properties, crucial for the longevity and performance of the final product. |
| Thermal Finishing | Alters microstructure and surface characteristics, enhancing mechanical properties and surface integrity. |
| Industry Standards | Guidelines from ASTM ensure consistency and quality in surface finishes, meeting performance and aesthetic requirements. |
Tip: I recommend selecting the finishing process based on the casting's intended application. For example, chemical finishing works best for parts exposed to moisture or chemicals, while thermal finishing suits components requiring enhanced strength.
By carefully executing mold removal and finishing, I ensure the casting achieves the desired precision, durability, and appearance. These steps play a vital role in delivering high-quality components for demanding industries.
Comparison of Key Factors
Dimensional Accuracy and Surface Finish
When I compare casting methods, dimensional accuracy and surface finish stand out as critical factors. Investment casting excels in both areas. It achieves tolerances as tight as ±0.005 inches and surface finishes as smooth as Ra 125 microinches. This precision makes it ideal for intricate designs and components requiring minimal post-processing.
In contrast, sand casting offers lower accuracy, with tolerances ranging from ±1% to ±2%. Its rough surface finish often requires additional machining. Gravity casting, on the other hand, provides better precision than sand casting, with tolerances as precise as ±0.5%. It also delivers smoother surfaces, though not as refined as investment casting.
| Casting Method | Dimensional Accuracy | Surface Finish |
|---|---|---|
| Investment Casting | Up to ±0.005 inches | As smooth as Ra 125 microinches |
| Gravity Casting | As precise as ±0.5% | Glossy, refined texture |
| Sand Casting | ±1% to ±2% | Rougher, often requires finishing |
Tip: For projects requiring high precision and smooth finishes, I recommend investment casting over other methods.
Cost and Production Volume
Cost and production volume often determine the feasibility of a casting method. Investment casting involves medium to high upfront tooling costs but compensates with low post-cast machining expenses. This makes it cost-effective for producing intricate parts in moderate to large quantities.
Sand casting, with its single-use molds, offers versatility for various batch sizes. However, its slower production rates can increase labor costs. Permanent mold casting, while efficient for high-volume production, incurs higher tooling costs and is limited to simpler designs.
| Casting Method | Upfront Tooling Cost | Post-Cast Machining Costs | Total Labor Costs |
|---|---|---|---|
| Investment Casting | Medium to High | Low | Medium to High |
| Sand Casting | Medium | Low to Medium | Medium |
| Permanent Mold | High | Low | Low |
I find that investment casting strikes a balance between cost and efficiency, especially for complex designs requiring precision.
Material Selection and Versatility
Material versatility is another area where investment casting shines. It accommodates a wide range of metals and alloys, including stainless steel, aluminum, bronze, and titanium. This flexibility allows me to tailor the process to specific application requirements.
Other methods, like sand casting and permanent mold casting, also support various materials. However, they may not achieve the same level of precision or complexity. For example, investment casting enables the creation of thin walls, internal cavities, and intricate geometries that are challenging for other techniques.
- Investment Casting: Suitable for complex shapes, thin walls, and a variety of metals.
- Sand Casting: Versatile but less precise, often used for larger components.
- Permanent Mold Casting: Best for non-ferrous metals and simpler designs.
Note: I recommend investment casting for projects requiring high precision and material flexibility, especially when working with intricate designs.
Complexity of Designs
When I evaluate casting methods, the ability to handle complex designs becomes a critical factor. Investment casting stands out for its unmatched precision and capability to produce intricate geometries. This method allows me to create components with thin walls, internal cavities, and detailed features that other methods struggle to achieve. For example, turbine blades in the aerospace industry require both intricate shapes and high-temperature alloys. Investment casting delivers on both fronts, making it the preferred choice for such demanding applications.
Shell molding also performs well in handling complex designs. It excels in producing high-precision parts like cylinder heads and gear housings for the automotive industry. However, it may not match the level of detail achievable with investment casting. Sand casting, on the other hand, is less suitable for intricate designs due to its lower dimensional accuracy and rougher surface finish.
Here’s a comparison of design complexity across different casting methods:
| Industry | Casting Method | Example Components | Complexity of Design Achievable |
|---|---|---|---|
| Automotive | Shell Molding | Cylinder Heads, Gear Housings, Camshafts, Crankshafts | High-precision parts with complex geometries |
| Automotive | Investment Casting | Engine Components, Transmission Parts | Tight tolerances and intricate shapes |
| Aerospace | Investment Casting | Turbine Blades | Intricate shapes with high-temperature alloys for durability |
| Medical | Investment Casting | Orthopedic Implants | High-quality standards with biocompatible materials |
Tip: For projects requiring intricate designs and tight tolerances, I recommend investment casting. It offers the flexibility to meet complex engineering demands while maintaining precision.
Environmental Impact and Waste
Environmental considerations play a significant role in selecting a casting method. Investment casting minimizes waste by using wax patterns that can be recycled. This process also reduces material usage by achieving near-net shapes, which require little to no machining. I find this particularly beneficial for industries aiming to lower their carbon footprint.
Sand casting, while versatile, generates more waste due to its disposable molds. The sand used in the process often requires treatment or disposal, adding to environmental concerns. Permanent mold casting, with its reusable molds, offers a more sustainable alternative. However, it may not match the precision and material efficiency of investment casting.
Another advantage of investment casting is its ability to work with a wide range of alloys, including those with high recyclability. This versatility supports sustainable manufacturing practices by reducing the need for virgin materials. Additionally, the process produces fewer emissions compared to methods like die casting, which relies on high-pressure systems.
Note: If sustainability is a priority, I suggest considering investment casting. Its low waste generation and material efficiency make it an environmentally friendly choice for precision manufacturing.
Advantages and Disadvantages
Pros of Investment Casting
Investment casting offers several advantages that make it a preferred choice for precision manufacturing. Its ability to produce intricate designs with tight tolerances ensures high-quality components for demanding industries. For example, in the aerospace sector, it creates lightweight and durable turbine blades essential for engine performance. Similarly, in the medical field, it ensures precise surgical instruments and implants that meet rigorous health standards.
Here’s a table summarizing the advantages across industries:
| Industry | Advantages |
|---|---|
| Aerospace | Produces lightweight, durable, and precise components, essential for turbine blades and engine parts. |
| Automotive | Enables production of durable and precise components, improving fuel efficiency and vehicle performance. |
| Medical | Ensures high precision for surgical instruments and implants, meeting rigorous health standards. |
| Industrial Machinery | Produces parts with tight tolerances for reliable performance in tough environments. |
| Oil and Gas | Creates components that withstand extreme temperatures and corrosive conditions. |
| Military and Defense | Delivers high-quality parts for mission-critical operations, ensuring reliability in harsh conditions. |
Other notable benefits include:
- High efficiency, leading to lower material and energy consumption.
- Reduced casting defects, resulting in lower rejection rates.
- Seamless production of intricate designs, enhancing functionality.
Tip: Investment casting is ideal for projects requiring precision, durability, and complex geometries.
Cons of Investment Casting
Despite its advantages, investment casting has some limitations. The process involves a slower shell production cycle, which can extend lead times. Additionally, the limited reuse of materials increases costs. For instance, the inability to recycle ceramic molds necessitates frequent reordering and disposal, adding to expenses. Undefined risering rules across various alloys also pose challenges, potentially leading to inefficiencies in production.
These factors make investment casting less suitable for high-volume, cost-sensitive applications. The manual nature of the process further contributes to higher labor costs compared to automated methods like die casting.
Comparison of Pros and Cons with Other Methods
When comparing investment casting with other methods, its strengths and weaknesses become evident. In the aerospace industry, investment casting excels in producing turbine blades with intricate shapes and tight tolerances. However, shell molding performs better in the automotive sector for cylinder heads, where speed and cost efficiency are critical.
Here’s a comparison table highlighting key differences:
| Feature | Investment Casting | Die Casting |
|---|---|---|
| Definition | Precision casting using a wax pattern | High-pressure metal casting |
| Material Selection | Ferrous and nonferrous alloys | Mainly aluminum, zinc, magnesium alloys |
| Characteristics | Manual process, superior dimensions | High-speed filling, high pressure |
| Cost | Higher due to manual labor, but less machining | Lower for mass production, high tooling cost |
| Surface Treatment | Best surface finish, precise tolerances | Good finish but requires more machining |
| Design and Size | Greater design flexibility, limited size | Can create larger components |
Note: Investment casting is unmatched for precision and complexity, while die casting suits high-volume production with simpler designs.

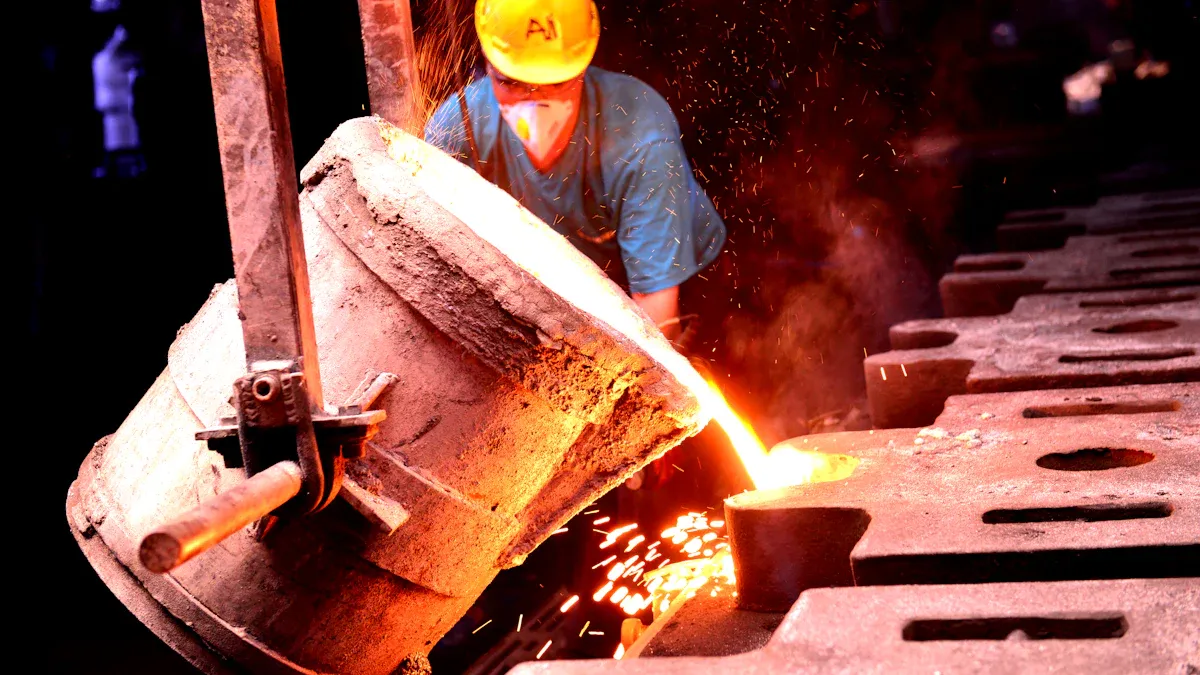

Applications and Suitability
Industries Best Suited for Investment Casting
I’ve observed that investment casting is highly versatile, making it suitable for a wide range of industries. Its ability to produce intricate designs with tight tolerances has made it indispensable in sectors like automotive, aerospace, and industrial machinery. For example, in the automotive industry, investment casting accounts for 80% of the market share. This dominance stems from the demand for lightweight, complex components that improve vehicle efficiency. Similarly, the aerospace and defense sectors rely on this method to manufacture turbine blades and other critical parts, driven by infrastructure investments and production expansion.
Here’s a quick overview of industries where investment casting excels:
| Industry | Market Share | Growth Trends | Key Drivers |
|---|---|---|---|
| Automotive | 80% | 10-15% | Demand for complex, lightweight components for vehicle efficiency |
| Aerospace and Defense | N/A | N/A | Expansion of production capabilities and infrastructure investments |
| Industrial Machinery | N/A | N/A | Technological advancements and increasing demand for complex components |
These industries benefit from the precision, durability, and material versatility that investment casting offers.
Scenarios Where Other Methods Excel
While investment casting is ideal for precision and complexity, other methods shine in specific scenarios. Sand casting, for instance, is cost-effective and versatile, making it suitable for large, simple components. Gravity casting delivers good surface finishes and supports high production volumes but works best for simpler shapes. I’ve found that these methods are often preferred when dimensional accuracy isn’t the top priority.
| Casting Method | Advantages | Limitations |
|---|---|---|
| Sand Casting | Cost-effective, versatile | Lower dimensional accuracy |
| Gravity Casting | Good surface finish, high production | Limited to simpler shapes |
For projects requiring high-speed production or lower costs, these methods often outperform investment casting.
Factors to Consider When Choosing a Casting Method
When selecting a casting method, I always evaluate key factors like design complexity, material requirements, and budget. Investment casting stands out for intricate designs and high-quality finishes. However, sand casting or gravity casting may be better for simpler designs or cost-sensitive projects. I recommend considering production volume, environmental impact, and the specific application to make the best choice.
Tip: For projects requiring precision and versatility, investment casting is often the best option. For simpler, high-volume needs, sand or gravity casting may be more practical.
When I compare investment casting with other methods, three key differences stand out: precision, complexity, and cost. Investment casting offers unmatched precision, achieving tolerances as tight as ±0.005 inches. It simplifies complex designs, making it ideal for intricate components like orthopedic implants. However, its higher overall cost makes it better suited for projects requiring precision over volume. In contrast, sand casting handles high complexity at a lower cost, while gravity casting delivers high precision but involves higher initial expenses.
To choose the right method, I recommend evaluating your project’s design requirements, material needs, and budget. For intricate designs or high-quality finishes, investment casting is the best choice. For large, simple components, sand casting provides cost-effective solutions. Gravity casting works well for high-precision parts like aluminum engine blocks.
Tip: Consider production volume and environmental impact when selecting a casting method. Investment casting minimizes waste, making it a sustainable option for precision manufacturing.
FAQ
What is the main advantage of investment casting compared to other methods?
Investment casting delivers unmatched precision and surface finish. It achieves tight tolerances and intricate designs that other methods struggle to replicate. This makes it ideal for industries requiring high-quality components, such as aerospace and medical manufacturing.
Tip: Choose investment casting for projects demanding complex geometries and superior finishes.
Can investment casting handle high production volumes?
Yes, investment casting works well for moderate to high production volumes. While the process involves higher upfront costs, its efficiency and reduced post-machining expenses make it cost-effective for producing intricate parts in larger quantities.
Which materials are best suited for investment casting?
Investment casting accommodates a wide range of metals and alloys. Stainless steel, aluminum, titanium, and bronze are commonly used. This versatility allows me to tailor the process to meet specific application requirements, especially for industries like automotive and industrial machinery.
How does investment casting minimize environmental impact?
Investment casting reduces waste by recycling wax patterns and achieving near-net shapes. This process uses less material and produces fewer emissions compared to methods like sand casting. Its sustainability makes it a preferred choice for eco-conscious manufacturing.
Is investment casting suitable for large components?
Investment casting excels in producing small to medium-sized components with intricate designs. For larger parts, methods like sand casting or permanent mold casting may be more practical due to their cost-effectiveness and ability to handle bulkier shapes.
Note: Consider the size and complexity of your project when selecting a casting method.
