How Investment Casting and Sand Casting Compare in Manufacturing
Manufacturers often face a critical decision when choosing between Investment Casting vs. sand casting. These methods differ significantly in cost, quality, and production efficiency. Investment casting involves higher pre-production expenses due to complex processes and costly materials like paraffin wax and ceramics. Tooling costs can range from $1,000 to over $20,000, depending on part complexity. In contrast, sand casting offers a more economical option with lower material costs and simpler mold production. Its use of inexpensive materials, such as sand and binders, makes it ideal for faster production cycles. Selecting the right method ensures optimal results tailored to specific project requirements.
Key Takeaways
- Investment casting gives precise shapes and smooth surfaces, great for detailed parts.
- Sand casting costs less and works well for big parts, with quicker production.
- Picking the right method depends on cost, accuracy, and how much is needed.
- Investment casting works with many materials, while sand casting fits common metals.
- Both can make many items, but investment casting is better for steady quality.

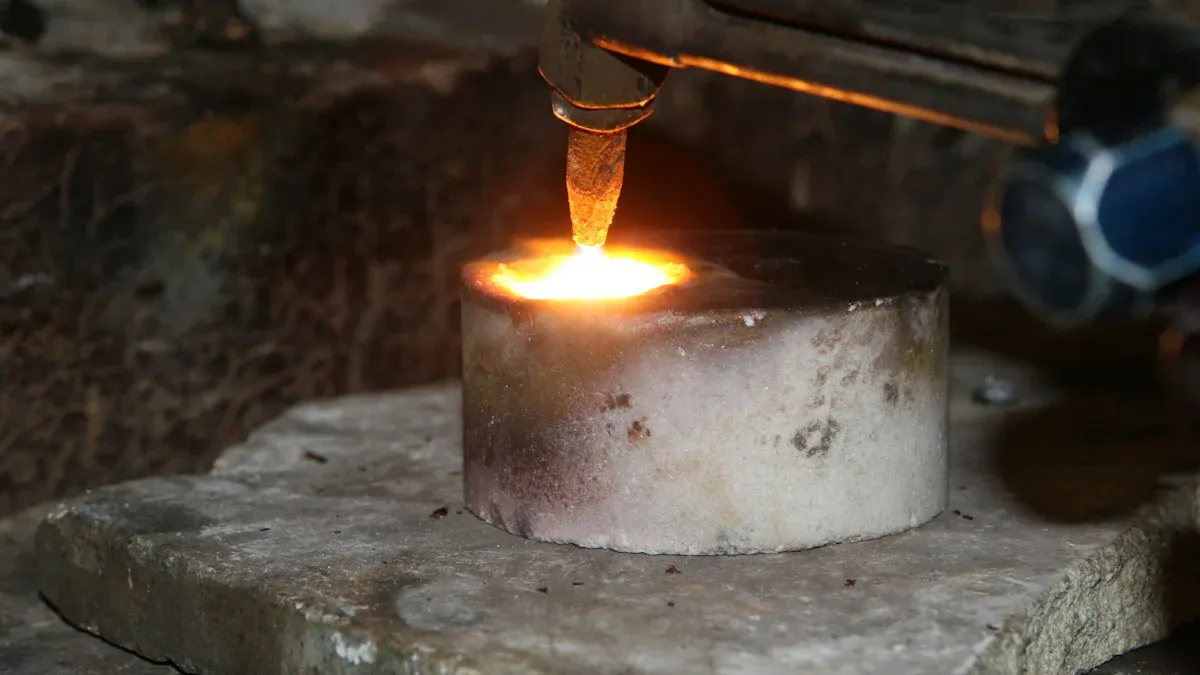

Investment Casting Overview
Process Overview
Investment casting, also known as lost-wax casting, is a precision manufacturing process that creates intricate and high-quality metal components. The process begins with the creation of a wax pattern, which is an exact replica of the desired part. This pattern is coated with ceramic material to form a mold. Once the ceramic hardens, the wax is melted and drained, leaving a hollow cavity. Molten metal is then poured into the mold, filling the cavity. After cooling, the ceramic shell is broken away to reveal the final cast part.
The investment casting process is renowned for its precision and ability to produce complex geometries. It achieves tolerances as tight as 0.005 inches and delivers smooth surface finishes, often eliminating the need for secondary machining. Techniques like non-destructive testing (NDT), including radiography and dye penetrant testing, ensure the integrity of cast components.
| Metric Type | Description |
|---|---|
| Non-Destructive Testing (NDT) | Techniques like radiography and dye penetrant testing to evaluate the integrity of cast components. |
| Dimensional Accuracy | Achievable tolerances of 0.005 inches, indicating high precision in the casting process. |
| Surface Finish | Investment casting provides exceptionally smooth finishes, often eliminating the need for further machining. |
Key Features
Investment casting offers several key features that make it a preferred choice in modern manufacturing:
- Material Versatility: This process accommodates a wide range of materials, including carbon steel, stainless steel, alloy steel, aluminum, and titanium. Each material offers unique properties, such as corrosion resistance, strength, or lightweight characteristics.
- High Precision: The process achieves exceptional dimensional accuracy and surface quality, reducing the need for post-processing.
- Complex Geometries: Investment casting can produce intricate shapes and designs that are difficult to achieve with other methods.
- Scalability: It supports both low-volume and high-volume production, making it suitable for various industries.
| Material Type | Properties |
|---|---|
| Carbon Steel | Ductility, strength, wear resistance |
| Stainless Steel | Corrosion resistance, strength |
| Alloy Steel | Enhanced mechanical properties |
| Aluminum | Lightweight, good corrosion resistance |
| Copper | Excellent thermal and electrical conductivity |
| Nickel Alloys | High-temperature strength |
| Titanium | High strength-to-weight ratio |
| Magnesium | Lightweight, good machinability |
Common Applications
Investment casting is widely used across multiple industries due to its versatility and precision. In the automotive sector, it produces critical components like engine parts and transmission components, enhancing vehicle performance and fuel efficiency. The aerospace industry relies on investment casting for lightweight, high-strength parts with complex geometries. The medical field benefits from this process for creating customized implants and surgical tools using biocompatible materials.
| Sector | Applications |
|---|---|
| Automotive | Engine parts, transmission components |
| Aerospace | Various components |
| Military | Defense-related parts |
| Medical | Orthopedic implants, surgical tools |
| Energy | Components for energy production |
Additionally, investment casting finds applications in agriculture, mining, nautical, and food processing industries. Its ability to produce durable and precise parts makes it a valuable manufacturing method across diverse sectors.

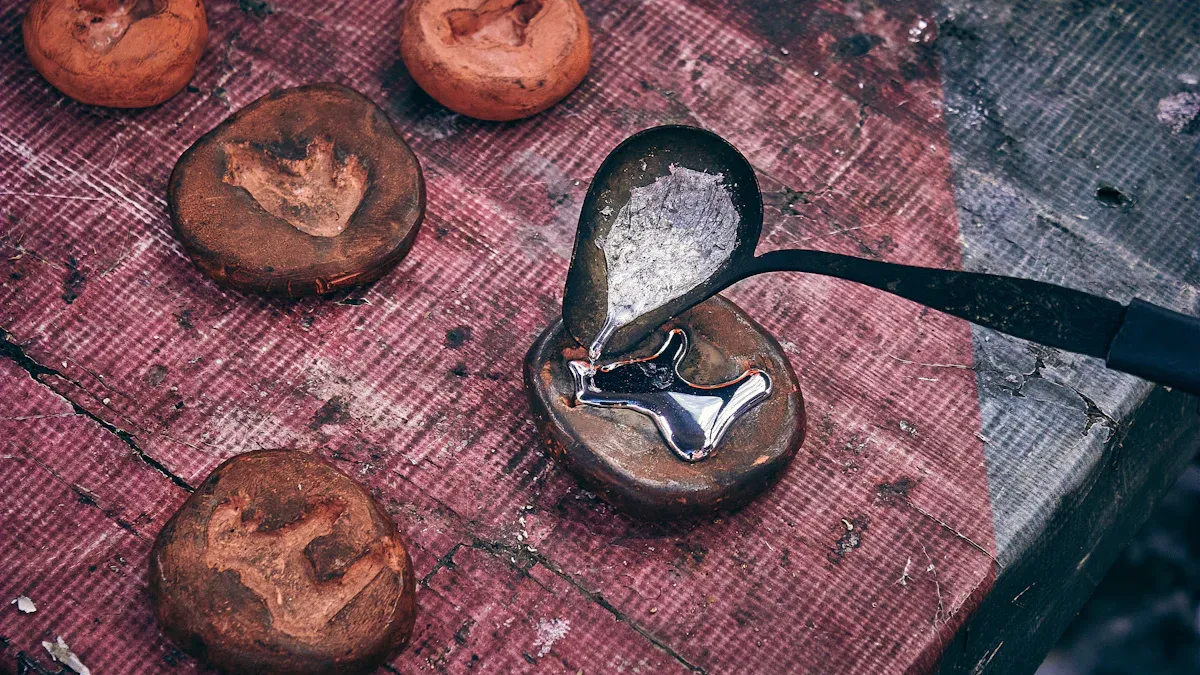

Sand Casting Overview
Process Overview
Sand casting is one of the oldest and most versatile manufacturing processes. It involves creating a mold from sand, which is then filled with molten metal to form the desired part. The process begins with the preparation of a pattern, typically made from wood, metal, or plastic, which represents the shape of the final product. This pattern is placed in a sand mold, and the sand is compacted around it. Once the mold is ready, the pattern is removed, leaving a cavity. Molten metal is poured into this cavity and allowed to cool and solidify. After cooling, the sand mold is broken apart to retrieve the cast part.
This method is widely used due to its simplicity and adaptability. It accommodates a broad range of metals, including aluminum, iron, and steel, and supports the production of parts in various sizes, from small components to large industrial machinery.
| Metric | Conventional Sand Casting | Ablation Sand Casting |
|---|---|---|
| Dimensional Deviation | 0.39% to 31.6% | Increased accuracy |
| Hardness | 19.1% to 58.9% | Higher hardness |
| Ultimate Tensile Strength | 31.1% to 41.82% | Enhanced UTS |
| Optimal Pouring Temperature | 800 ℃ | 850 ℃ |
| Optimal AFS Number | 45 | 40 |
| Optimal Binder Ratio | 5% | 9% |
Key Features
Sand casting offers several advantages that make it a popular choice in manufacturing:
- Cost-Effectiveness: The low cost of raw materials and molds makes sand casting an economical option for small to medium production runs.
- Versatility: It can produce large and intricate components that are challenging to manufacture using other methods.
- Material Flexibility: Sand casting supports a wide range of metals, including high-cost and high-temperature materials like titanium and nickel.
- Sustainability: The process allows for material reuse, reducing waste and enhancing environmental sustainability.
- Adaptability: It is suitable for prototyping and scaling up production, offering fast turnaround times and minimal design limitations.
Despite its benefits, sand casting produces a rougher surface finish compared to investment casting. It achieves net shapes within 1/4 of an inch, making it less precise than other methods like Die Casting.
Common Applications
Sand casting is integral to various industries due to its ability to produce durable and complex parts. The automotive sector uses it for engine blocks, transmission housings, and brake discs. In aerospace, it creates critical components that require high strength and heat resistance. The construction industry benefits from its capability to manufacture custom shapes and robust parts for infrastructure projects.
Other notable applications include:
- Medium-speed marine diesel flywheels.
- Nickel-aluminum bronze fittings for ship hulls.
- Barbecue grills and burner components.
- Tools for heavy machinery and oil fields.
- Decorative end pieces for aluminum extrusions.
Sand casting remains a reliable and cost-effective solution for producing a wide range of part sizes and complexities, making it a cornerstone of modern manufacturing.
Investment Casting vs. Sand Casting: Detailed Comparison
Cost
Tooling Costs
Tooling costs differ significantly between investment casting and sand casting. Investment casting requires intricate tooling, often made from metal, to create precise wax patterns. These tools can cost between $1,000 and $20,000, depending on the complexity of the design. Sand casting, on the other hand, uses simpler molds made from sand and binders, resulting in lower tooling costs. This makes sand casting a more economical choice for projects with limited budgets or less intricate designs.
| Cost Factor | Investment Casting | Sand Casting |
|---|---|---|
| Tooling Costs | $1,000 to over $20,000 | Lower |
| Upfront Tooling | Medium to High | Medium |
Production Costs
Production costs also vary between the two methods. Investment casting involves higher material expenses due to the use of ceramics and wax. It also requires longer lead times, which can increase labor costs. Sand casting, with its use of inexpensive sand and faster production cycles, offers a cost-effective solution for larger parts or high-volume production. However, additional machining may be necessary to achieve desired tolerances, slightly increasing post-cast costs.
| Cost Factor | Investment Casting | Sand Casting |
|---|---|---|
| Material Costs | More expensive materials | Less expensive materials |
| Post-Cast Machining Costs | Low | Low to Medium |
Surface Finish and Precision
Surface Quality
Investment casting delivers an exceptionally smooth surface finish, often eliminating the need for secondary machining. This makes it ideal for applications requiring high aesthetic or functional standards. In contrast, sand casting produces a rougher surface finish due to the texture of the sand mold. Components made through sand casting may require additional finishing processes to meet specific requirements.
| Casting Method | Surface Finish Quality |
|---|---|
| Investment Casting | Exceptionally smooth |
| Sand Casting | Rougher surface finish |
Dimensional Tolerances
Dimensional accuracy is another area where investment casting excels. It achieves tolerances as tight as ±0.005 inches per inch, making it suitable for intricate designs. Sand casting, while versatile, offers less precision with tolerances typically requiring additional machining to meet exact specifications. This difference highlights the suitability of investment casting for high-precision applications.
| Casting Method | Dimensional Accuracy Tolerances |
|---|---|
| Investment Casting | CT 4-6, ±0.005 per inch |
| Sand Casting | CT 10-13, requires machining |
Material Options
Metals Used in Investment Casting
Investment casting supports a wide range of materials, including stainless steel, carbon steel, alloy steel, aluminum, brass, and bronze. These materials offer unique properties such as corrosion resistance, strength, and lightweight characteristics. This versatility makes investment casting suitable for industries requiring high-quality components with specific material properties.
| Casting Method | Materials Used | Key Characteristics |
|---|---|---|
| Investment Casting | Stainless Steel, Carbon Steel, Alloy Steel, Aluminum, Brass, Bronze | High precision, excellent surface finish, design flexibility |
Metals Used in Sand Casting
Sand casting accommodates a variety of metals, including iron, steel, and non-ferrous alloys. Its ability to handle larger and heavier parts makes it a practical choice for industries like construction and automotive. While it may not match the precision of investment casting, its material flexibility and cost-effectiveness remain significant advantages.
| Casting Method | Materials Used | Key Characteristics |
|---|---|---|
| Sand Casting | Iron, Steel, Non-Ferrous Alloys | Cost-effective, suitable for larger and heavier parts |
Production Volume
Low-Volume Production
Investment casting is well-suited for low-volume production due to its ability to create intricate designs with high precision. Manufacturers often choose this method for producing prototypes or specialized components where accuracy is critical. The process's scalability allows for efficient production of small batches without compromising quality. Sand casting, while also capable of low-volume production, is more economical for simpler designs. Its lower tooling costs make it a practical choice for projects with limited budgets or less complex requirements.
| Factor | Sand Casting | Investment Casting |
|---|---|---|
| Tooling Costs | Lower due to reusable molds | Higher due to complex molds |
| Production Volume | Suitable for low to medium volumes | Efficient for medium to high volumes |
| Dimensional Accuracy | Lower tolerances (CT 10-13) | Higher tolerances (CT 4-6) |
High-Volume Production
For high-volume production, investment casting offers significant advantages in terms of precision and material consistency. Its ability to produce identical parts with minimal variation makes it ideal for industries requiring large quantities of high-quality components. Sand casting, on the other hand, excels in producing larger parts at a faster rate. Its simpler mold preparation process enables quicker turnaround times, making it a preferred choice for high-volume projects with less stringent precision requirements.
Lead Time
Time for Tooling and Setup
Investment casting involves a more time-intensive tooling and setup process. Creating detailed wax patterns and ceramic molds requires meticulous attention to detail, which can extend lead times. Sand casting, with its simpler mold preparation, offers shorter setup times. This makes it a more efficient option for projects with tight deadlines or immediate production needs.
Time for Production Runs
Once tooling is complete, investment casting delivers consistent results but at a slower pace due to the complexity of the process. Sand casting, by contrast, supports faster production runs, especially for larger components. Its ability to reuse sand molds further enhances efficiency, reducing overall lead times for high-volume manufacturing.
Environmental Impact
Waste and Recycling
Investment casting generates less waste due to its precise material usage and the ability to recycle wax patterns. Sand casting, while more wasteful, incorporates reusable sand molds, which helps mitigate its environmental footprint. Both methods demonstrate a commitment to sustainability through material recycling practices.
Energy Consumption
Investment casting typically consumes more energy due to the high temperatures required for melting metals and curing ceramic molds. Sand casting, with its simpler processes, uses less energy, making it a more environmentally friendly option for certain applications. However, the choice between the two methods often depends on the specific energy requirements of the project.
Pros and Cons of Investment Casting vs. Sand Casting
Advantages and Disadvantages of Investment Casting
Investment casting offers several advantages that make it a preferred choice for precision manufacturing. Its ability to produce high-precision components with tight tolerances ensures exceptional dimensional accuracy. This process also delivers a superior surface finish, often eliminating the need for secondary machining. Manufacturers benefit from its capability to create complex shapes, which are challenging to achieve with other methods. Additionally, investment casting supports a wide range of materials, including stainless steel, carbon steel, and aluminum, providing versatility for various industries. The reusability of wax patterns and mold materials further enhances its sustainability.
However, investment casting has some limitations. The process involves higher costs due to the complexity of molds and materials used. Longer production cycles can also pose challenges for projects with tight deadlines. Labor-intensive steps, such as creating wax patterns and ceramic molds, contribute to increased expenses. Furthermore, size limitations restrict its application for larger components, and casting cores can be difficult to manage in intricate designs.
| Feature | Advantages | Disadvantages |
|---|---|---|
| Precision | High accuracy and tight tolerances | Labor-intensive process |
| Surface Finish | Superior surface finish | Higher costs |
| Complexity | Capable of producing complex shapes | Size limitations |
| Material Diversity | Wide range of materials | Difficulty with casting cores |
| Sustainability | Reusability of mold materials | Longer production cycles |
Advantages and Disadvantages of Sand Casting
Sand casting is renowned for its versatility and cost-effectiveness. It accommodates a wide range of metals, including iron, steel, and non-ferrous alloys, making it suitable for diverse applications. The process supports the production of large and intricate components, offering adaptability for prototyping and scaling up production. Its simple tooling and fast turnaround times make it an economical choice for small to medium production runs. Additionally, sand casting has a lower ecological footprint due to the reusability of sand molds.
Despite these benefits, sand casting has its drawbacks. It produces a rougher surface finish, often requiring additional machining to meet specific standards. Dimensional accuracy is lower compared to investment casting, which limits its use for high-precision applications. The process can be labor-intensive, and handling complex sand cores poses challenges. Furthermore, contaminated sand waste and uncontrolled cooling rates may impact the quality of the final product.
| Advantages of Sand Casting | Disadvantages of Sand Casting |
|---|---|
| Versatility | Poor surface finish |
| Low cost | Variable dimensional accuracy |
| Simple tooling | Labor intensity |
| Adaptability | Contaminated sand waste issue |
| Wide range of materials | Patterns degrade with scale |
| Few design limitations | Uncontrolled cooling rates |
| Fast turnaround | Complex sand cores handling |
Investment casting and sand casting differ significantly in complexity, precision, cost, and material versatility. Investment casting excels in producing intricate parts with superior surface finishes and tight tolerances (CT 4-6). Sand casting, while less precise (CT 10-13), offers a cost-effective solution for larger components and simpler designs.
| Feature | Investment Casting | Sand Casting |
|---|---|---|
| Complexity | Capable of producing intricate parts | Limited to simpler designs |
| Surface Finish | Superior, smooth finishes | Rougher surface requiring additional work |
| Dimensional Tolerances | High accuracy (CT 4-6) | Lower accuracy (CT 10-13) |
| Cost | More expensive, ideal for precision parts | More economical for larger parts |
| Material Versatility | Wide range of metals, specific to needs | Versatile but depends on part requirements |
Choosing the right method depends on project requirements. Manufacturers seeking high precision and complex geometries should opt for investment casting. Sand casting suits projects with larger parts or tighter budgets.
Investment casting has been a trusted manufacturing method for centuries, offering exceptional accuracy, material efficiency, and design flexibility.
Aligning the casting method with production goals ensures optimal results. Factors like cost, precision, and production volume must guide the decision-making process.
FAQ
What are the main differences between investment casting and sand casting?
Investment casting offers higher precision, smoother surface finishes, and tighter tolerances. Sand casting, however, is more cost-effective and suitable for larger components. Each method serves different manufacturing needs based on complexity, budget, and production volume.
Which industries benefit most from investment casting?
Industries like aerospace, automotive, medical, and energy rely heavily on investment casting. Its ability to produce intricate, high-precision components makes it ideal for applications requiring superior quality and performance.
Is sand casting environmentally friendly?
Sand casting supports sustainability by reusing sand molds and minimizing waste. However, it generates more waste compared to investment casting. Manufacturers often recycle materials to reduce environmental impact.
Can both methods handle high-volume production?
Yes, both methods can manage high-volume production. Investment casting excels in producing consistent, high-quality parts, while sand casting is faster and more economical for larger, simpler designs.
How do material options differ between the two methods?
Investment casting accommodates a broader range of metals, including stainless steel, carbon steel, and titanium. Sand casting supports common metals like iron, steel, and non-ferrous alloys, making it versatile for various applications.
