Top Investment Casting Manufacturers Sharing：Exploring Customization in Investment Casting Processes
Investment Casting offers unparalleled customization, making it indispensable for industries requiring precision and complexity. This process enables the creation of intricate geometries, essential for sectors like aerospace and automotive.
- Manufacturers use it to produce high-quality components tailored to specific needs.
- Its versatility extends to unique items such as jewelry and dental implants.
Technological advancements, including improved mold materials and coating techniques, further enhance efficiency and precision. These innovations allow top investment casting manufacturers to deliver customized solutions that meet diverse industry demands while ensuring exceptional quality and functionality.
Key Takeaways
- Investment casting is very customizable, perfect for aerospace and cars needing precision.
- 3D modeling helps make tools by copying designs correctly, reducing mistakes and saving time.
- CNC mold making is very accurate, removing human mistakes and keeping molds consistent.
- Quality checks ensure high standards so every part meets customer needs.
- Wax injection improves size accuracy, making detailed parts with fewer mistakes.
- Heating molds before pouring makes surfaces smoother and castings stronger.
- After casting, treatments like heating and shot peening make parts tougher and better.
- Special packaging keeps castings safe during shipping, making customers happy.
Customization in Tooling Production
3D Model Creation Based on Customer Drawings
3D modeling plays a pivotal role in customizing tooling production. By creating digital representations based on customer drawings, manufacturers can ensure precise replication of design specifications. This approach enhances accuracy and reduces errors during the tooling process.
- 3D documentation enables tracking areas of wear, allowing for proactive maintenance based on data rather than assumptions.
- Statistical insights, such as working lengths and standard deviations, help identify inconsistencies in tooling performance.
- The creation of a "digital twin" aids in predicting tool lifespan and optimizing management processes.
These capabilities streamline production and improve the overall quality of the final product. Top investment casting manufacturers leverage these advanced techniques to meet diverse customer requirements effectively.
CNC Mold Making for Precision
Computer Numerical Control (CNC) mold making ensures unparalleled precision in tooling production. This technology uses automated machinery to craft molds with exact dimensions, adhering to the most intricate design details. CNC machining eliminates human error, resulting in consistent and reliable molds.
The process also supports a wide range of materials, making it adaptable to various industry needs. By employing CNC mold making, manufacturers can achieve tighter tolerances and superior surface finishes. This level of precision is crucial for industries like aerospace and automotive, where even minor deviations can impact performance.
Quality Assurance in Tooling Design
Quality assurance (QA) is integral to tooling design, ensuring that every component meets the highest standards. Manufacturers track key metrics to evaluate the performance of tooling and testing efforts. These metrics include yield, throughput, and cycle time, which assess production efficiency.
- Product metrics, such as defect rates and customer complaints, measure the quality of the final output.
- Maintenance metrics, including downtime and maintenance ratios, provide insights into equipment performance.

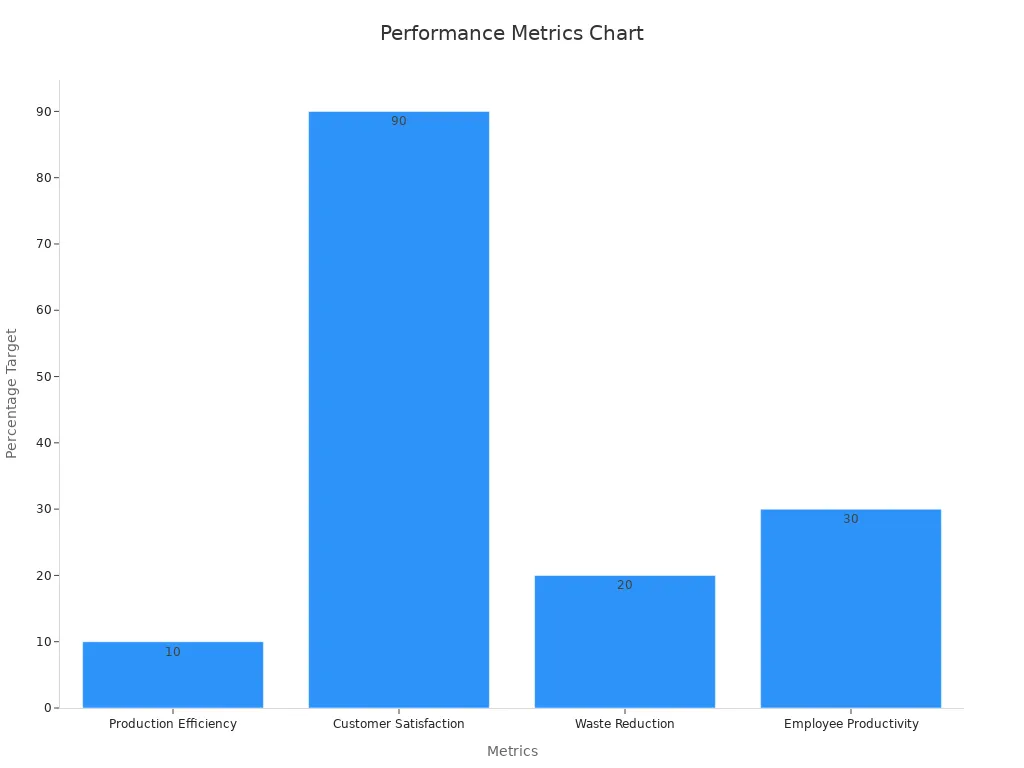

Establishing measurable goals during the planning phase enhances the effectiveness of QA activities. By focusing on these metrics, manufacturers can identify areas for improvement and maintain consistent quality. This commitment to QA ensures that tooling designs meet customer expectations and industry standards.
Wax Injection and Pattern Assembly
Wax Replica Production with Thermal Allowances
Wax replica production is a critical step in investment casting, requiring precise thermal allowances to ensure dimensional accuracy. Manufacturers inject wax into aluminum die cavities to create patterns that replicate the final component's details. This process accounts for thermal contraction, ensuring the final casting meets exact specifications.
- Adjusting injection pressure minimizes dimensional errors.
- Using various mold types, such as RTV silicone rubber or epoxy molds, enhances pattern accuracy.
- Post-machining or coining ensures high precision for intricate parts.
Optimizing input parameters during wax injection improves dimensional accuracy and surface finish. Research highlights the repeatability of vacuum casting (VC) processes for fabricating components with precise dimensions. Additionally, multiple wax patterns are produced to account for potential rejects, ensuring efficiency in the casting process.
Inspection and Preparation of Wax Patterns
Inspection and preparation of wax patterns are essential for maintaining quality throughout the casting process. Manufacturers evaluate patterns for defects, such as surface irregularities or dimensional inaccuracies, before assembly. Advanced techniques, including vacuum pressure adjustments and wax temperature control, significantly enhance accuracy.
| Study | Findings |
|---|---|
| Yarlagadda et al. (2003) | PU molds produce more accurate wax patterns than RTV molds. |
| Rahmati et al. (2007) | Vacuum pressure and wax temperature affect dimensional accuracy. |
| Zamani et al. (2014) | Epoxy molds yield more accurate wax patterns than silicone rubber molds. |
These findings underscore the importance of selecting the right mold material and process parameters. By addressing potential defects early, manufacturers ensure that only high-quality patterns proceed to the next stage.
Wax Tree Assembly for Efficient Casting
Wax tree assembly streamlines the casting process by grouping multiple patterns into a single structure. This approach reduces production costs and enhances efficiency. Each tree allows simultaneous processing of multiple patterns, significantly increasing throughput.
- Increased patterns per tree improve overall production efficiency.
- Grouping patterns reduces the piece price of the final casting.
This method not only optimizes resource utilization but also minimizes waste. By assembling wax trees with precision, manufacturers ensure consistent results in the final castings. This step exemplifies the importance of customization in investment casting, as it directly impacts production efficiency and cost-effectiveness.
Shell Building and Wax Removal
Ceramic Shell Construction for Strength
Ceramic shell construction forms the backbone of the investment casting process. Manufacturers build these shells layer by layer, using advanced slurry and refractory materials to achieve the desired thickness and strength. Each layer is carefully applied to ensure uniformity and prevent weak points. This meticulous process allows the shell to withstand the extreme temperatures and pressures of molten metal pouring.
- Improved mold materials enhance the shell's ability to resist cracking and warping during casting.
- Advanced coating techniques improve release properties, ensuring smoother ejection of the final product.
- Enhanced dimensional accuracy reduces the likelihood of defects, leading to higher-quality castings.
These advancements in shell-building technology not only improve the durability of the molds but also contribute to cost efficiency by minimizing production errors. Industries such as aerospace and automotive benefit significantly from these robust and reliable molds.
Controlled Drying Processes for Durability
Drying the ceramic shell is a critical step that directly impacts its durability. Manufacturers employ controlled drying processes to eliminate moisture without compromising the shell's structural integrity. Factors such as temperature, humidity, and airflow are carefully monitored to ensure optimal drying conditions.
Rapid drying can lead to cracks or deformation, which compromise the shell's performance. To avoid these issues, manufacturers use gradual drying techniques that allow the shell to harden evenly. This approach enhances the shell's ability to withstand the thermal and mechanical stresses of the casting process. By prioritizing controlled drying, manufacturers ensure that the final molds meet the highest standards of strength and reliability.
Steam Autoclave Wax Removal Techniques
Steam autoclave techniques play a pivotal role in removing wax patterns from the ceramic shell. This method ensures the complete removal of wax while preserving the integrity of the mold. The process involves placing the molds in an autoclave with the wax-exposed end facing downward.
The autoclave is sealed, and steam is injected at temperatures exceeding 300°F. The steam pressurizes the vessel, heating the wax and causing it to melt rapidly. The pressure offsets the expanding wax inside the mold, allowing it to drain efficiently. Nearly 100% of the wax is captured and recycled for future use in the wax injection process.
This technique not only ensures clean and precise wax removal but also supports sustainability by recycling the wax. The effectiveness of steam autoclave methods makes them a preferred choice for investment casting manufacturers aiming for high-quality results and eco-friendly practices.
Melt and Pouring Customization
Preheating Molds for Optimal Casting
Preheating molds is a critical step in the investment casting process. This practice eliminates moisture from the ceramic shell, ensuring a superior surface finish on the final product. Preheating also strengthens the ceramic material, reducing the risk of cracks or deformations during the pouring phase. By stabilizing the mold, manufacturers can prevent adverse chemical reactions between the molten metal and the shell, which could compromise the casting's quality.
Preheating molds not only enhances the casting's surface finish but also ensures the structural integrity of the mold during the high-temperature pouring process.
Top investment casting manufacturers prioritize this step to deliver high-quality components that meet stringent industry standards.
Metal Selection and Melting Options
The choice of metal and the melting process significantly influence the customization options available in investment casting. Manufacturers often use induction furnaces for melting, as these systems ensure uniform temperatures and reduce inclusions or porosity in the metal. This approach results in higher-quality castings with fewer defects.
| Benefit | Description |
|---|---|
| Higher Quality Metal | Induction melting promotes homogeneous temperature, reducing inclusions and porosity. |
| More Efficient Energy Usage | Induction furnaces are the most efficient for melting metals, leading to lower energy costs. |
| Lower Metal Costs | Metal loss can be as low as 0.5%, allowing for cost-effective use of recycled materials. |
By selecting the appropriate metal and melting method, manufacturers can tailor the casting process to meet specific customer requirements. This flexibility is particularly valuable for industries like aerospace and automotive, where precision and material performance are paramount.
Chemical Composition Analysis for Quality Assurance
Chemical composition analysis plays a vital role in ensuring the quality of investment castings. This process identifies the chemical makeup of the molten metal, which directly affects its mechanical properties and overall performance. Before pouring, manufacturers analyze the metal's composition to confirm it falls within the specified range. This step ensures the final product meets the desired standards for strength, durability, and functionality.
Conducting this analysis before pouring also minimizes the risk of defects in the final casting. By maintaining strict control over the metal's composition, manufacturers can produce components that meet both customer expectations and industry regulations. This meticulous approach underscores the importance of quality assurance in the investment casting process.
Post-Casting Treatments
Heat Treatment Options for Enhanced Properties
Heat Treatment enhances the mechanical properties of cast metal products, making them suitable for demanding applications. Manufacturers employ various techniques to achieve specific outcomes based on customer requirements.
- Hardening increases the metal's hardness by altering its crystal structure through rapid cooling.
- Annealing softens the material, improving ductility and making it easier to machine.
- Normalizing stabilizes the grain structure, preparing the metal for further processing.
- Tempering adjusts hardness and enhances malleability through controlled heating.
- Quenching rapidly cools the metal, creating a tough and strong product ideal for structural applications.
These processes allow manufacturers to tailor the properties of cast components, ensuring they meet the functional and durability standards of industries like aerospace and automotive. Top investment casting manufacturers often rely on these techniques to deliver high-performance parts that align with customer specifications.
Shot Peening for Surface Finishing
Shot peening is a surface treatment process that improves the fatigue strength and durability of cast components. This technique involves bombarding the surface with small spherical media, creating compressive stresses that enhance the material's resistance to cracking and wear.
The process also improves the surface finish, making it smoother and more uniform. This is particularly beneficial for components exposed to high-stress environments, such as turbine blades or automotive suspension parts. By customizing the intensity and media type, manufacturers can achieve specific surface characteristics tailored to the application. Shot peening exemplifies how post-casting treatments contribute to the longevity and reliability of investment-cast products.
Machining for Precision and Customization
Machining is a critical step in post-casting treatments, ensuring that components meet precise dimensional and functional requirements. Advanced machining techniques allow manufacturers to achieve tight tolerances and superior surface finishes, significantly reducing defects like warping or cracking.
- High-performance materials used in modern molds enhance dimensional accuracy.
- Advanced coating techniques improve release properties, minimizing the risk of parts sticking during ejection.
These advancements enable manufacturers to customize components for specific applications, whether for aerospace, medical, or industrial use. By integrating machining into the production process, top investment casting manufacturers deliver parts that meet exacting standards, ensuring customer satisfaction and product reliability.
Inspection and Quality Control
Dimensional and Visual Inspections
Dimensional and visual inspections are critical steps in ensuring the quality of investment castings. These methods verify that components meet design specifications and maintain high visual standards. Dimensional inspections use advanced tools like coordinate measuring machines (CMMs) to confirm that parts adhere to precise measurements. Visual inspections, on the other hand, identify surface defects such as cracks, porosity, or irregularities that could compromise functionality.
Manufacturers often employ a combination of inspection methods to achieve reliable results. The table below highlights some commonly used techniques and their purposes:
| Inspection Method | Purpose |
|---|---|
| Dimensional Inspection | Ensures parts meet specified dimensions |
| 100% Visual Inspection | Detects surface defects and visual quality |
| Magnetic Particle Inspection (MPI) | Identifies surface and near-surface defects |
| Liquid Penetrant Inspection (LPI) | Detects surface-breaking defects |
| Ultrasonic Testing (UT) | Detects internal flaws |
By integrating these methods, manufacturers can ensure that every component meets stringent quality standards. Top investment casting manufacturers rely on these inspections to deliver reliable and defect-free products.
Chemical and Mechanical Testing
Chemical and mechanical testing ensures that investment castings meet the required material and performance standards. Chemical analysis verifies the composition of the metal, ensuring it aligns with customer specifications. Mechanical tests, such as tensile strength and hardness evaluations, assess the durability and functionality of the final product.
Experimental results support the accuracy of these testing methods. For instance, studies have shown that dimensional accuracy in vacuum casting processes achieves a maximum shrinkage of 2.29% linearly and 4.77% radially. Additionally, process capability indices (Cpk) exceeding 1.3 indicate high reliability. The table below summarizes key findings:
| Parameter | Result | Description |
|---|---|---|
| Dimensional Accuracy | 2.29% (linear), 4.77% (radial) | Maximum shrinkage observed after vacuum casting process |
| Tolerance Grades | Acceptable | As per ISO standard UNI EN 20286-I (1995) and DIN16901 |
| Process Capability | Cpk > 1.3 | Indicates high capability of the proposed process |
| Surface Finish | Comparable | At par with traditional molding patterns, suitable for investment casting applications |
These tests provide valuable insights into the material's properties, ensuring that the final product meets both industry standards and customer expectations.
Collaboration with Third-Party Testing Labs
Collaboration with third-party testing labs enhances the credibility and reliability of quality control processes. These labs offer specialized expertise and advanced equipment to conduct thorough inspections and tests. By partnering with independent labs, manufacturers can validate their internal findings and ensure compliance with international standards.
Third-party labs often perform additional tests, such as metallographic observations and ultrasonic testing, to detect microstructural defects or internal flaws. This collaboration not only strengthens quality assurance but also builds customer trust. Top investment casting manufacturers frequently work with these labs to guarantee that their products meet the highest quality benchmarks.
Packaging Customization by Top Investment Casting Manufacturers
Rust Prevention Techniques
Rust prevention is a critical aspect of packaging for investment castings, especially for components exposed to moisture during transit or storage. Manufacturers employ several proven techniques to safeguard metal surfaces from corrosion:
- Cathodic Protection: This method supplies an electrical charge to suppress the electrochemical reaction responsible for rust formation.
- Weathered Steel: This material develops a rust-resistant coating when exposed to weather, offering both protection and aesthetic appeal. However, it may stain nearby surfaces.
- Humidity Control: Dehumidifiers or silica desiccants maintain relative humidity below 50%, significantly reducing the risk of rust.
- Surface Cleaning: Regular cleaning removes contaminants that trap moisture, which accelerates rusting.
Testing methods like ASTM D1735 (humidity testing) and ASTM B117 (salt fog testing) validate the effectiveness of these techniques. By integrating these strategies, manufacturers ensure that cast components remain in pristine condition, even in challenging environments.
Damage-Resistant Packing Solutions
Investment casting manufacturers prioritize damage-resistant packaging to protect components during shipping. Effective strategies reduce breakage rates and ensure customer satisfaction. The table below highlights key approaches:
| Strategy | Description |
|---|---|
| Customizable protective features | Tailoring protection to fit the product’s size, shape, and vulnerability points enhances safety. |
| Correct box size | Ensures products fit snugly, minimizing movement and potential damage during shipping. |
| Impact indicators | Monitors handling during transit, deterring rough handling and reducing damage risks. |
Impact indicators, for instance, encourage careful handling by providing visual evidence of mishandling. Additionally, systematic data collection on shipping damage helps manufacturers analyze trends and refine packaging designs. Durable materials like bubble wrap and double-walled boxes further enhance protection, ensuring that components arrive intact.
Tailored Packaging for Customer Needs
Tailored packaging solutions address the unique requirements of each customer, reflecting a commitment to quality and precision. Custom designs enhance product safety by mitigating risks associated with specific shapes, sizes, and vulnerabilities. The table below outlines the benefits of tailored packaging:
| Benefit | Description |
|---|---|
| Enhanced Product Safety | Tailored packaging addresses specific risks associated with product size, shape, and vulnerability, significantly reducing damage during shipping. |
| Improved Customer Satisfaction | Custom solutions reflect a brand's commitment to quality, positively impacting customer perception. |
| Tailored Fit | Custom packaging ensures a snug fit for products, minimizing movement and potential damage during transit. |
By offering tailored solutions, top investment casting manufacturers not only protect their products but also strengthen customer trust. These customized approaches demonstrate their dedication to meeting industry standards and exceeding client expectations.
Customization in investment casting transforms manufacturing by addressing specific customer needs at every stage. From tooling design to packaging, tailored solutions enhance product quality, functionality, and delivery efficiency. This approach ensures that manufacturers meet industry demands while exceeding customer expectations.
Collaboration with top manufacturers often leads to remarkable outcomes. For instance, Aristo-Cast Inc developed a lightweight automotive bracket, achieving a 35% cost reduction. Similarly, Turbo Cast (India) Pvt. Ltd. optimized the E-Fan’s Housing design, reducing costs and improving process robustness. The table below highlights these success stories:
| Manufacturer | Case Study Description | Outcome |
|---|---|---|
| Aristo-Cast Inc | Developed a mesh trimmed bracket for an automotive chassis, replacing a 3D printed component. The part needed to withstand impact crash testing while being lightweight. | Achieved a 35% cost reduction and improved material integrity. |
| Turbo Cast (India) Pvt. Ltd. | Collaborated with a customer to produce the E-Fan’s Housing, which required intricate geometry and tight tolerances. Turbo Cast worked closely with the design team to finalize the design after a year of concurrent engineering. | Successfully reduced manufacturing costs and developed a robust investment casting process. |
| Atlantic Casting & Engineering | Created a single-piece A356 investment casting for the Abrams Tank turbine engine lubrication pump, which was previously a three-piece assembly. This change improved reliability and performance while reducing machining and assembly costs. | Enhanced surface finish and efficiency at a lower price. |
The benefits of customization extend beyond individual projects. Aggregate performance metrics reveal significant improvements in production efficiency, customer satisfaction, and waste reduction. The chart below illustrates these enhancements:
Investment casting offers unmatched precision and adaptability, making it an ideal choice for industries with complex requirements. Manufacturers and customers alike can benefit from exploring this process and partnering with industry leaders to achieve exceptional results.
FAQ
What is investment casting, and why is it preferred?
Investment casting is a manufacturing process that creates precise and complex components by pouring molten metal into ceramic molds. It is preferred for its ability to produce intricate designs, tight tolerances, and excellent surface finishes, making it ideal for industries like aerospace, automotive, and medical.
How does customization benefit investment casting?
Customization allows manufacturers to tailor every step of the process, from material selection to packaging. This ensures components meet specific design, functionality, and quality requirements. It also enhances efficiency, reduces waste, and improves customer satisfaction by delivering products that align with unique industry needs.
What materials can be used in investment casting?
Investment casting supports a wide range of materials, including stainless steel, aluminum, titanium, and superalloys. These materials offer versatility for various applications, from lightweight aerospace parts to corrosion-resistant medical implants. Manufacturers select materials based on the component's intended use and performance requirements.
How do manufacturers ensure quality in investment casting?
Manufacturers implement rigorous quality control measures, including dimensional inspections, chemical composition analysis, and mechanical testing. Advanced tools like coordinate measuring machines (CMMs) and third-party lab collaborations ensure components meet industry standards and customer specifications. These steps guarantee reliability and defect-free products.
What industries benefit most from investment casting?
Industries requiring precision and durability, such as aerospace, automotive, medical, and energy, benefit significantly. For example, aerospace uses investment casting for turbine blades, while the medical field relies on it for surgical implants. Its versatility makes it suitable for diverse applications.
Can investment casting reduce production costs?
Yes, investment casting minimizes material waste and reduces machining requirements, leading to cost savings. Techniques like wax tree assembly and efficient mold designs further optimize production. These factors make it a cost-effective solution for high-quality, complex components.
How does packaging customization enhance customer satisfaction?
Packaging customization ensures components remain undamaged during transit. Rust prevention techniques, damage-resistant materials, and tailored designs protect products and reflect a commitment to quality. These measures improve customer trust and satisfaction by delivering components in pristine condition.
Is investment casting environmentally friendly?
Investment casting incorporates eco-friendly practices, such as recycling wax and reducing material waste. Techniques like steam autoclave wax removal and efficient energy usage in melting processes further support sustainability. These efforts align with modern environmental standards and reduce the process's ecological footprint.
