Cost-Effective Investment Casting Techniques for Automotive Parts
Investment Casting techniques for automotive parts play a crucial role in modern manufacturing. This process enables the production of lightweight components, such as aluminum parts, which can reduce vehicle weight by up to 50%. This weight reduction enhances fuel efficiency and lowers CO2 emissions. However, achieving cost efficiency without sacrificing quality remains a significant challenge. High initial setup costs, including mold creation and equipment investment, often contribute to production expenses. Despite these hurdles, investment casting delivers exceptional dimensional accuracy, often within ±0.005 inches, minimizing the need for costly post-casting machining. By streamlining operations, manufacturers can achieve up to a 20% increase in productivity, making this technique indispensable for cost-effective automotive production.
Key Takeaways
- Investment casting makes vehicles lighter, saving fuel and cutting pollution.
- Using cheaper materials like aluminum boosts performance and saves money.
- Special filters, like foam and honeycomb ones, make better castings with fewer flaws.
- Automated machines speed up work, cut labor costs, and improve efficiency.
- Working with skilled foundries helps create better designs and lowers costs.

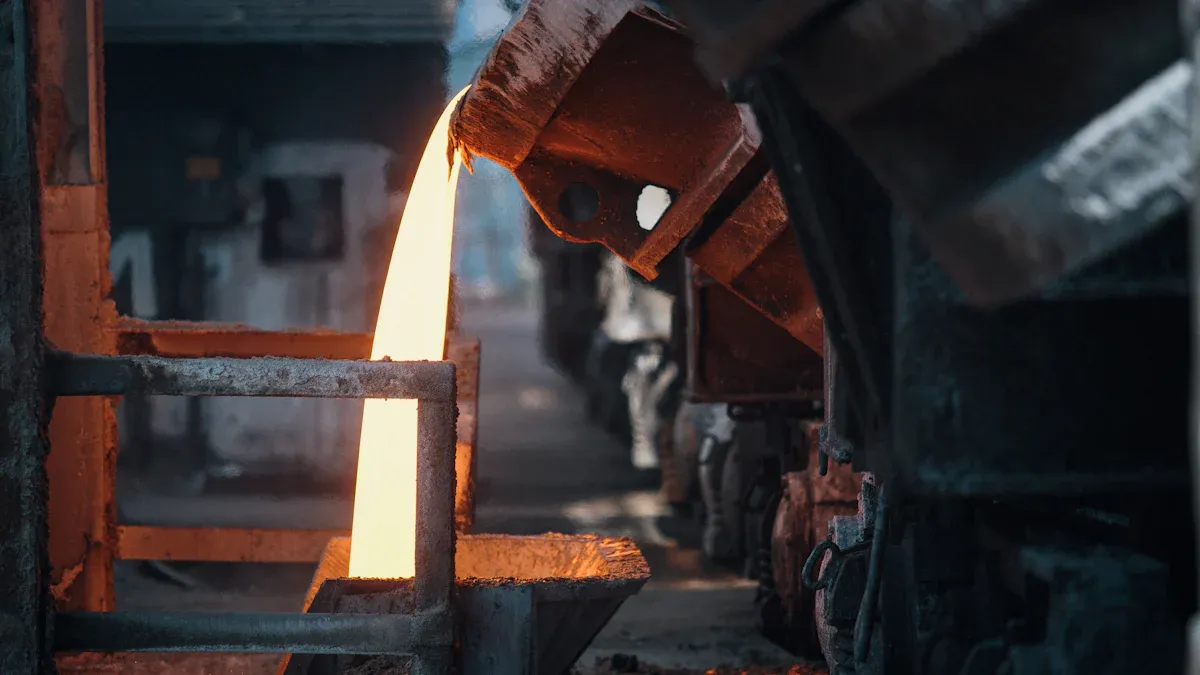

Fundamentals of Investment Casting for Automotive Parts
What is Investment Casting?
Investment casting, also known as lost-wax casting, is a manufacturing process that creates precise and complex components. This technique involves creating a wax pattern, which is coated with a ceramic shell. Once the wax is melted away, molten metal is poured into the mold to form the desired part. This process is particularly effective for producing lightweight, high-strength automotive parts with intricate designs, such as turbine blades and engine components. The ability to achieve tight tolerances and smooth finishes makes investment casting a preferred choice in the automotive industry.
Benefits of Investment Casting for Automotive Applications
Precision and Complexity in Design
Investment casting offers unparalleled precision, enabling the production of intricate designs that would be challenging with other methods. For example, it allows for the creation of parts with complex geometries and high strength-to-weight ratios, which are essential for high-performance vehicles. This precision reduces the need for additional machining, saving both time and costs.
Material Versatility for Automotive Needs
The process accommodates a wide range of materials, including aluminum, titanium alloys, and stainless steel. This versatility ensures that manufacturers can select materials tailored to specific automotive applications, such as lightweight aluminum for engine blocks or durable stainless steel for suspension components.
Durability and Performance in Harsh Conditions
Automotive parts produced through investment casting demonstrate exceptional durability. These components can withstand high temperatures, corrosive environments, and mechanical stress, making them ideal for engine and drivetrain applications. The process also ensures consistent quality, enhancing the overall performance of vehicles.
Note: Investment casting reduces production time and costs by allowing complex parts to be created as single components, minimizing waste and improving efficiency.
Common Automotive Applications
Engine Components
Investment casting is widely used to manufacture engine blocks, cylinder heads, and turbine blades. These components benefit from the process's ability to produce lightweight yet strong parts, improving fuel efficiency and engine performance.
Suspension and Chassis Parts
Suspension and chassis components require high strength and durability. Investment casting ensures these parts meet stringent performance standards while maintaining cost efficiency.
Transmission and Drivetrain Components
Transmission and drivetrain parts, such as gears and shafts, demand precision and reliability. Investment casting delivers the required accuracy, contributing to smoother vehicle operation and reduced wear over time.
| Component Type | Benefits |
|---|---|
| Engine Blocks | High strength-to-weight ratios |
| Cylinder Heads | Complex geometries |
| Transmission Parts | Improved engine performance and reduced weight |
| Materials Used | Aluminum and titanium alloys |
| Process Improvements | CNC machining and robotic automation |
| Outcome | Increased production efficiency |
Cost-Effective Investment Casting Techniques
Advanced Filtering Methods
Foam Filters for Cost Efficiency
Foam filters improve cost efficiency by reducing defects during the casting process. Their porous structure captures impurities, ensuring cleaner molten metal flows into molds. This technique minimizes material waste and enhances yield rates, particularly in large-scale automotive production. By preventing inclusions and non-fill issues, foam filters save high-value alloys, lowering overall production costs.
Honeycomb Ceramic Filters for Precision
Honeycomb ceramic filters offer superior precision in investment casting techniques for automotive parts. Their uniform structure ensures consistent filtration, resulting in smoother finishes and fewer defects. These filters enhance dimensional accuracy, reducing the need for post-casting machining. Manufacturers benefit from lower labor costs and faster production cycles, making honeycomb filters a cost-effective choice.
3D-Printed Filters for Customization
3D-printed filters enable customization tailored to specific automotive applications. Their precise designs optimize filtration for complex geometries, ensuring high-quality castings. This innovation reduces scrap rates and enhances profitability by minimizing material waste. Additionally, 3D printing accelerates filter production, supporting faster turnaround times for automotive manufacturers.
Material Optimization Strategies
Selecting Cost-Effective Alloys
Choosing cost-effective alloys like aluminum and magnesium enhances both performance and affordability. These lightweight materials reduce vehicle weight by up to 50%, improving fuel efficiency and lowering emissions. Their recyclability further contributes to cost savings, making them ideal for sustainable automotive production.
Recycling and Reusing Casting Materials
Recycling and reusing casting materials significantly reduce production costs. Manufacturers can reclaim wax and metal remnants from previous processes, minimizing waste and lowering material expenses. This strategy not only improves profitability but also aligns with environmental sustainability goals in the automotive industry.
Process Enhancements
Automation in Wax Pattern Production
Automation in wax pattern production streamlines operations and improves consistency. Automated systems handle large volumes efficiently, reducing labor costs and lowering the cost per unit. Precision in wax patterns enhances mold accuracy, decreasing defects and rework, which saves time and resources.
Streamlined Mold Preparation Techniques
Streamlined mold preparation techniques accelerate production while maintaining quality. Advanced coating methods improve mold release properties, reducing post-processing needs. These innovations enhance dimensional accuracy and surface finish, ensuring high-quality automotive parts at lower costs.
Energy-Efficient Melting and Pouring Processes
Energy-efficient melting and pouring processes reduce operational expenses. Modern furnaces optimize energy consumption, lowering costs while maintaining high-quality results. These processes also minimize environmental impact, supporting sustainable manufacturing practices in the automotive sector.
Key Factors Influencing Costs in Investment Casting
Material Selection and Sourcing
Balancing Cost and Performance
Material selection plays a pivotal role in determining the cost efficiency of investment casting techniques for automotive parts. Manufacturers must balance cost and performance by choosing materials that meet functional requirements without inflating expenses. For instance, aluminum offers a cost-effective solution for lightweight components, while stainless steel provides superior durability for high-stress applications. The table below highlights the cost implications of commonly used materials:
| Material Type | Cost Implication |
|---|---|
| Stainless Steel | More expensive due to higher raw material costs and superior properties. |
| Aluminum | Cost-effective for weight reduction with good strength-to-weight ratio. |
| Nickel and Cobalt Alloys | Higher costs due to excellent performance in demanding applications. |
Availability of Specialized Materials
The availability of specialized materials can significantly influence costs. Limited supply chains or reliance on rare alloys often lead to higher procurement expenses. Manufacturers can mitigate these challenges by sourcing locally available materials or partnering with suppliers who offer competitive pricing.
Design Complexity and Its Impact
Simplifying Complex Designs
Design complexity directly affects production costs. Research shows that intricate geometries increase machining time, leading to higher expenses. Simplifying designs without compromising functionality can reduce machining time and material waste, ultimately lowering costs. For example, consolidating multiple components into a single casting reduces assembly requirements and enhances efficiency.
Reducing Costs Without Sacrificing Quality
Advanced simulation tools allow manufacturers to optimize designs for cost efficiency while maintaining quality. These tools predict potential defects and suggest modifications, ensuring that the final product meets performance standards without unnecessary expenses.
Production Volume Considerations
Economies of Scale in Automotive Casting
Higher production volumes often result in lower per-unit costs due to economies of scale. As production increases, fixed costs like tooling and equipment are distributed across more units, reducing overall expenses. The table below illustrates the market growth of automotive casting, highlighting its scalability:
| Year | Market Size (USD Billion) | Growth Rate (%) |
|---|---|---|
| 2023 | 80.40 | N/A |
| 2024 | 84.69 | N/A |
| 2030 | 116.67 | 5.46 |
Comparing Batch and Continuous Production
Batch production offers flexibility for small orders but incurs higher costs per unit. In contrast, continuous production supports large-scale manufacturing with reduced costs. Automotive manufacturers often prefer continuous production to meet high demand efficiently.
Strategies to Minimize Scrap and Rework
Enhancing Mold Accuracy
Improving Wax Pattern Precision
Accurate wax patterns are essential for reducing defects in investment casting. Advanced automation in wax pattern production ensures consistent dimensions and smooth surfaces. This precision minimizes errors during the mold-making process, leading to fewer casting defects. For example, controlled flow during wax injection prevents non-fill issues, which are critical for complex automotive components. Enhanced wax pattern precision directly correlates with higher yield rates and reduced material waste.
Advanced Mold Coating Techniques
Innovative mold coating techniques improve surface quality and reduce the likelihood of defects. High-performance coatings enhance mold release properties, ensuring that castings maintain their intricate details without damage. These coatings also prevent contamination, which can compromise the integrity of the final product. A case study revealed that improved filtration efficiency, combined with advanced coatings, significantly reduced scrap and rework, saving costs and increasing throughput.
| Evidence Description | Impact on Casting Defects and Scrap Rates |
|---|---|
| Enhanced filtration efficiency leads to significant reductions in scrap and rework. | Reduces wasted materials and additional labor costs. |
| Holy Filters improve metal alloy purity and prevent costly defects. | Higher yield and increased throughput without extra costs. |
| Fewer defects result in less rework, cutting down on labor and material expenses. | Directly correlates with reduced scrap rates. |
| Controlled flow prevents non-fill issues, crucial for specific applications. | Enhances mold accuracy, reducing defects in critical casting processes. |
Implementing Quality Control Measures
Non-Destructive Testing (NDT) Methods
Non-destructive testing methods, such as ultrasonic and radiographic inspections, play a vital role in identifying defects without damaging the castings. These techniques ensure that only high-quality components proceed to the next stage of production. The integration of IoT technology has further enhanced defect detection accuracy, achieving an F1-score of 0.94. This advancement allows manufacturers to maintain stringent quality standards while minimizing rework.
Real-Time Monitoring During Casting
Real-time monitoring systems provide immediate feedback during the casting process, enabling quick adjustments to prevent defects. These systems utilize sensors and data analytics to track parameters such as temperature and flow rate. For instance, a system capable of processing each casting in 2.3 seconds can handle 26 castings per minute, ensuring efficiency and consistency. This proactive approach reduces scrap rates and enhances overall productivity.
Workforce Training and Development
Skilled Labor for Precision Casting
A well-trained workforce is crucial for achieving precision in investment casting techniques for automotive parts. Companies that invest in employee training report significant improvements in operational efficiency and product quality. Skilled technicians can identify potential issues early, reducing errors and rework. This focus on training also enhances customer satisfaction by delivering reliable and defect-free components.
Continuous Improvement Programs
Continuous improvement programs foster a culture of excellence within manufacturing facilities. These programs encourage employees to adopt best practices and stay updated on the latest technologies. Organizations that prioritize ongoing development see notable enhancements in casting precision and reduced scrap rates. Improved workforce capabilities directly contribute to higher profitability and better performance in the automotive industry.
- A specific aerospace client experienced a yield improvement of 6-12%.
- The switch to advanced filters led to reduced scrap costs.
- Overall profitability increased due to enhanced filtration efficiency.
Recommendations for Achieving Precision and Cost Efficiency
Partnering with Experienced Foundries
Collaborating with experienced foundries offers significant advantages for automotive manufacturers. These partnerships provide access to advanced casting technologies and expertise, enabling the production of high-quality components at reduced costs. Foundries with a proven track record can co-design optimized components, ensuring compatibility with both casting processes and end-use applications. This approach minimizes waste and enhances functionality.
| Benefit Type | Description |
|---|---|
| Innovation | Collaborations foster the development of tailored solutions that meet specific performance criteria. |
| Cost Reduction | Co-design initiatives lead to optimized components, resulting in reduced production costs. |
| Enhanced Functionality | Components are optimized for both casting processes and end-use applications, improving functionality. |
Strategic partnerships also drive innovation, allowing manufacturers to scale production efficiently. By leveraging the expertise of foundries, companies can achieve precision and cost efficiency in their casting operations.
Investing in Research and Development
Investing in research and development (R&D) is essential for advancing cost-effective casting techniques. R&D efforts lead to innovations that improve casting processes and expand their applications. For example, integrating 3D printing into mold-making enables precise designs, reducing material waste and environmental impact. This advancement supports the production of lightweight components, such as aluminum parts, which can reduce vehicle weight by up to 50%. This weight reduction enhances fuel efficiency and lowers CO2 emissions.
- R&D enhances operational efficiency and profitability in the investment casting sector.
- Innovations driven by R&D broaden the applications of investment casting.
- Advancements in technology reduce scrap rates and improve environmental sustainability.
Manufacturers that prioritize R&D gain a competitive edge by staying ahead of industry trends and meeting evolving market demands.
Leveraging Technology for Process Optimization
The adoption of advanced technology is crucial for optimizing casting processes. Automation and data analytics improve production efficiency, reduce waste, and lower operational costs. Real-time tracking systems streamline inventory management, minimizing stock levels and carrying costs. Just-in-time manufacturing further reduces expenses by aligning production schedules with demand.
- Automation enhances quality and reduces costs.
- Data analytics improve inventory management and lead time reduction.
- Innovative materials and processes minimize waste and operational expenses.
By leveraging technology, manufacturers can achieve long-term success in a competitive industry while maintaining precision and cost efficiency.
Cost-effective investment casting techniques play a vital role in automotive manufacturing by balancing precision, durability, and affordability. Key strategies, such as material optimization, advanced filtering methods, and process automation, significantly reduce costs while maintaining high-quality standards. For example, single-piece production minimizes assembly-related defects, while aluminum's strength-to-weight ratio ensures cost-effective lightweight components.
| Aspect | Benefit | Impact on Cost-Effectiveness |
|---|---|---|
| Single-Piece Production | Reduces production time and costs associated with assembly | Minimizes assembly-related defects and costs |
| Material Reusability | Lowers per-unit cost in large production runs | Enhances overall cost-effectiveness |
| Use of Aluminum | Lightweight with good strength-to-weight ratio | Cost-effective for weight-sensitive parts |
| Integration of 3D Printing | Allows for precise designs and reduces material waste | Lowers overall environmental impact and costs |
Manufacturers should embrace these innovative practices to achieve sustainable growth and remain competitive in the evolving automotive industry.
FAQ
What is the primary advantage of investment casting for automotive parts?
Investment casting provides exceptional precision and allows for the creation of complex geometries. This process reduces the need for additional machining, saving time and costs. It also supports the use of lightweight materials, improving fuel efficiency and vehicle performance.
How does material selection impact the cost of investment casting?
Material selection directly affects production costs. Lightweight alloys like aluminum reduce expenses due to their recyclability and lower weight. Manufacturers can balance cost and performance by choosing materials that meet functional requirements without inflating expenses.
Can investment casting reduce waste in automotive manufacturing?
Yes, investment casting minimizes waste by enabling the production of single-piece components. This process reduces material scrap and eliminates the need for assembly. Recycling wax and metal remnants further enhances sustainability and cost efficiency.
How does automation improve investment casting processes?
Automation enhances consistency and reduces labor costs. Automated systems streamline wax pattern production and mold preparation, ensuring precision. This reduces defects and rework, leading to faster production cycles and lower operational expenses.
Why is partnering with experienced foundries beneficial?
Experienced foundries offer advanced technologies and expertise. They co-design optimized components, ensuring compatibility with casting processes. This collaboration reduces waste, enhances functionality, and lowers production costs, making it a strategic choice for automotive manufacturers.
