Are These the 6 Most Important Factors for Investment Casting Excellence?

Yes, these six factors are indeed paramount for achieving excellence in Stainless Steel Investment Casting. Achieving excellence in Investment Casting is crucial for product performance, reliability, and overall success. I recognize the growing importance of this process; the investment segment is the fastest-growing part of the stainless steel casting market from 2024-2035. This growth underscores the need for high-quality components. Precision matters, whether it is forCasting Agricultural Machinery Parts or producing a complex Bimetallic Casting Part. A superior Bi-Metallic Casting ensures durability and optimal function in demanding applications.

Key Takeaways

• Choosing the right stainless steel material is the first step for strong and corrosion-resistant parts.
• Making accurate wax patterns and molds helps create precise metal castings.
• Carefully building the ceramic shell ensures the final metal part is strong and smooth.
• Controlling how hot the metal is and how fast it cools helps make good quality parts.
• Treating the metal after casting and making its surface smooth improves its strength and look.
• Checking every part carefully with tests ensures it meets high quality standards.

Precision in Stainless Steel Investment Casting Material Selection

Choosing the right material is the first step to excellent stainless steel investment casting. I know this choice directly affects how well the final part performs.

Understanding Stainless Steel Grades

I always start by understanding the different stainless steel grades. Many common grades exist for investment casting. For example, we often use 304, 304L, 316, 316L, 17-4 PH, and 2205 Duplex. Grade 304 is very popular. It is an austenitic steel, also known as A2. Grade 316 is great for marine settings because it resists corrosion so well.

We also work with different types like austenitic, ferritic, martensitic, and duplex stainless steels. Each type has unique features.

Impact of Alloy Composition

The elements in the steel mix matter a lot. Chromium is a key player. Stainless steel needs at least 10.5% chromium to resist rust and corrosion. When chromium meets oxygen, it forms a protective film. This film helps the steel heal itself. More chromium generally means better resistance. For example, 300 series stainless steels have nickel, which makes them very corrosion-resistant. The 400 series has more chromium but lacks nickel. This makes it less resistant to corrosion than the 300 series, but it offers higher durability.

Material Certification and Traceability

I believe material certification and traceability are non-negotiable. Standards like ASTM A0957/A0957M-21 set rules for chemical makeup and mechanical properties. Certifications like ISO 9001:2015 ensure our quality systems meet customer needs. We also follow PED for pressure equipment.

Traceability means we can track the material from its origin. We do this through:

• Chemical composition analysis
• Non-destructive testing (NDT)
• Dimensional verification
• Mechanical testing

We provide material certificates and reports with every shipment. This ensures full transparency and confidence in our stainless steel Investment Casting Products.

Wax Pattern Design and Tooling Accuracy for Quality Stainless Steel Investment Casting

I know that the wax pattern is the heart of the investment casting process. Its design and the accuracy of its tooling directly impact the final product. A precise wax pattern means a precise metal casting.

Precision in Wax Injection Molds

I always prioritize precision in our wax injection molds. These molds are critical. They shape the wax patterns. We design them to be highly accurate. This ensures that every wax pattern we produce is consistent. It also helps us achieve the tight tolerances needed for quality Stainless Steel Investment Casting.

Minimizing Pattern Defects

I focus on minimizing defects in our wax patterns. Even small flaws can lead to big problems in the final metal part. Here are some common defects I watch out for:

• Sink: This happens when heavy sections of the wax pattern shrink too much during cooling. It creates a dished-in surface. Incorrect wax injection settings, like high temperature or low pressure, can cause this.
• Etch Spotting: I see this when etch solution is not fully rinsed off after cleaning. It leaves rings or drips on the wax. This can affect the shell building process.
• Core Breakage: This occurs when the ceramic core breaks. It can happen during wax injection if the mold design stresses the core or if injection pressure is too high.

Dimensional Stability of Wax Patterns

I understand that wax patterns can distort. This affects the final part's dimensions. To minimize this, I recommend investing patterns immediately after they come out of the die. This is because significant shrinkage can happen within the first 24 hours.

I find that electric heat sources are better than conventional Bunsen burners. They offer fast heating and cleanliness. Electric heat sources also provide uniform and constant heat. This helps us create superior quality patterns.

Shell Building Process Control in Stainless Steel Investment Casting

I know that building the ceramic shell is a critical step in creating excellent Stainless Steel Investment Casting parts. This shell forms the mold for the molten metal. Its quality directly affects the final product.

Slurry Composition and Consistency

I pay close attention to the slurry. This is a mix of ceramic particles and binders. Its viscosity is very important. I know it directly affects how thick our shell becomes. It also impacts the surface finish of the final part. If the slurry is too thin or too thick, the coating will not be even. This can cause cracks or a rough surface. I make sure the slurry stays stable. This helps me get a uniform coating thickness. It also prevents issues like cracking in the shell. The right viscosity also tells me about the particle size. This affects the shell's strength and how easily gases can escape.

Stucco Application and Adhesion

After dipping the wax pattern in the slurry, I apply stucco. This is a fine ceramic sand. It sticks to the wet slurry layer. This process builds up the shell's thickness and strength. Good adhesion between the stucco and slurry is vital. It prevents layers from separating. I commonly use materials like:

• Zircon
• Fused silica These materials help create a strong and stable shell.

Drying and Curing Protocols

Drying the shells correctly is also key. I learned that drying shells for four hours between dips gives the strongest shells. Shorter drying times, like one or two hours, make the shells much weaker. There is not much difference in strength if I dry them for four, eight, or even twenty-four hours. I also make sure to keep the humidity around 50% during drying. I use oscillating fans to help with consistent drying. This careful drying process makes sure the shell is strong enough to hold the molten metal.

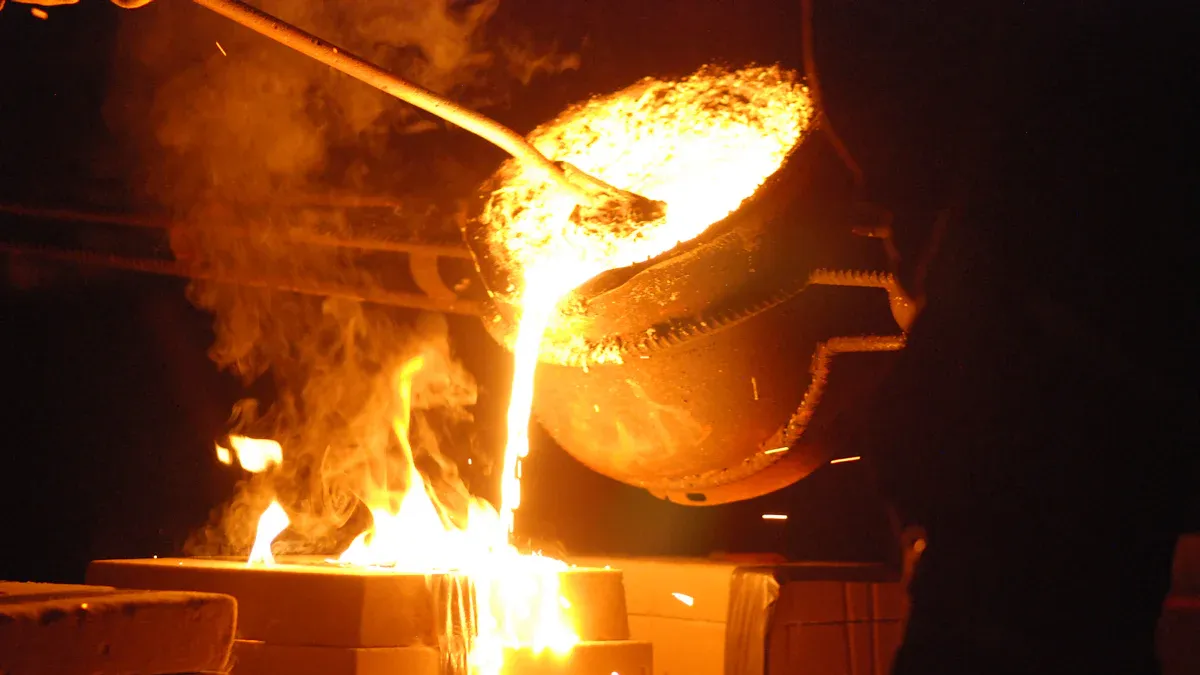

Pouring and Solidification Management for Superior Stainless Steel Investment Casting

I know that managing the pouring and solidification process is vital. It directly affects the quality and integrity of our Stainless Steel Investment Casting parts. This stage turns the molten metal into a solid component.

Optimal Pouring Temperature

I always pay close attention to the pouring temperature. It is a critical factor. For CF8 stainless steel, a common alloy, I typically pour between 1450°C and 1550°C. This range can change based on the part's shape and thickness. The specific alloy I use also causes slight variations in the metal pouring temperature.

Increasing the pouring temperature gives the molten steel higher superheat. This makes the metal flow better. It stays liquid longer. However, I must avoid excessively high pouring temperatures. They can cause problems like coarse grains, thermal cracks, pores, and sand sticking. For small, thin-walled, or complex precision castings, I set the pouring temperature around 150°C above the melting point. For larger, thick-walled castings, I aim for about 100°C above the melting point.

Controlled Cooling Rates

I understand that controlled cooling rates are essential. They shape the microstructure and mechanical properties of the casting. Consistent cooling rates in 17-4 PH stainless steel investment castings lead to a uniform grain structure. This uniform structure helps achieve consistent mechanical properties after heat treatment.

Increasing the cooling rate generally improves the microstructure and refines grains. This enhances mechanical properties. However, excessively fast cooling rates can create significant stress. This might cause deformation or cracking in complex castings. For low-alloy cast steels sensitive to temper brittleness, I recommend rapid cooling after tempering. This helps avoid reducing toughness.

Gating and Risering Design

I design the gating and risering system carefully. It guides the molten metal into the mold cavity. A good design minimizes turbulence and prevents inclusions. I ensure a consistent pouring rate and time. This prevents turbulence and premature cooling. It balances fast mold filling with avoiding chaotic flow. Chaotic flow introduces defects like trapped air and oxides.

The choke area controls the metal entry rate. It maintains a full system under constant pressure. This ensures smooth, laminar flow. Runners and gates must be sized correctly. They supply enough metal without waste. Gates are small and placed strategically. They ensure smooth metal entry and uniform filling. They also prevent turbulence, incomplete fills, or hot spots. I use ceramic filters in the pouring cup or sprue. These trap non-metallic inclusions, slag, or dross. This stops them from entering the mold cavity and causing defects. Poor design can lead to gas porosity or non-metallic inclusions.

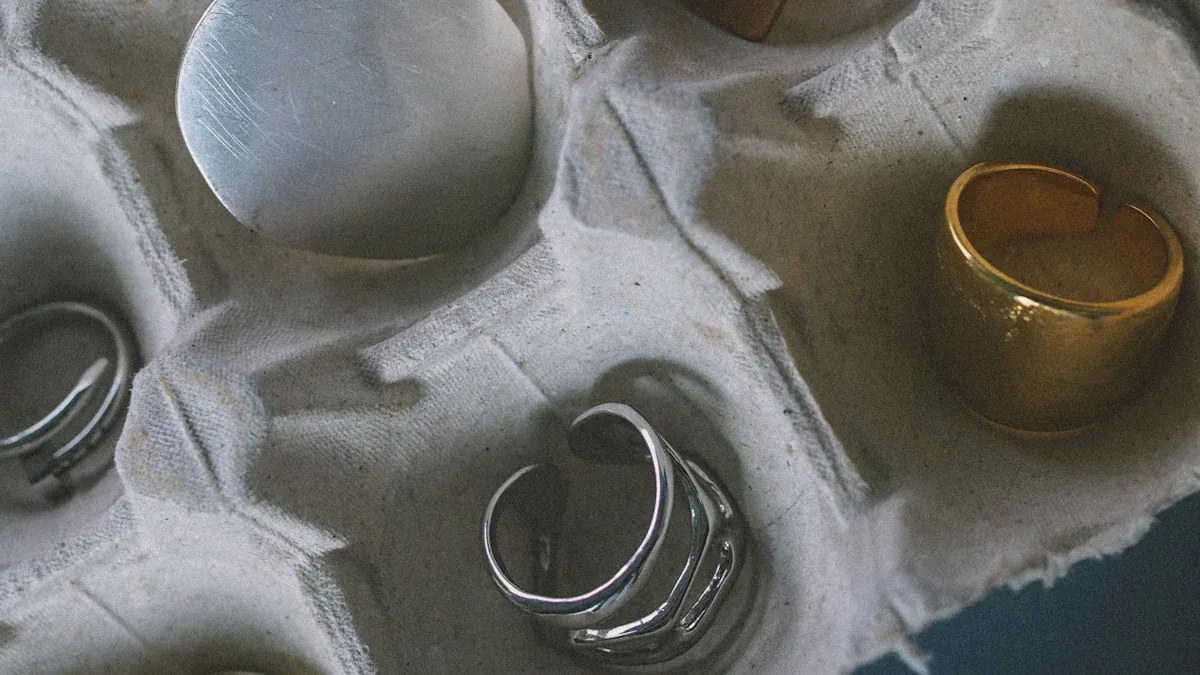

Post-Casting Processing and Finishing for Stainless Steel Investment Casting Excellence

I know that the journey to a perfect casting does not end with solidification. Post-casting processing and finishing are vital steps. They ensure the final product meets all performance and aesthetic requirements.

Heat Treatment for Mechanical Properties

I always prioritize heat treatment. It significantly enhances the mechanical properties of our castings. For 316L, a common alloy, I use solution annealing. This process involves heating the steel to 1040-1100°C. We then rapidly cool it. This dissolves carbides and relieves internal stresses. It also redissolves chromium carbides. This maximizes corrosion resistance. Solution annealing homogenizes the microstructure. It creates a uniform austenitic structure. This enhances ductility and toughness. It also optimizes tensile and yield strength. I ensure annealing occurs above 730°C and below 1380°C. This prevents the formation of sigma and ferrite phases. These phases can cause undesired magnetism. Annealing at 1020°C significantly reduces the ferrite phase. It completely dissolves the sigma phase into the austenite matrix. This ensures excellent corrosion resistance and mechanical properties.

Surface Finish and Deburring

I understand that surface finish is crucial for both function and appearance. We use various methods to achieve specific surface roughness. Abrasive blasting is one technique. It uses different media like glass beads or alumina grains. This creates a smoother matte finish or more aggressive material removal. Polishing and buffing involve sequential grit progression. This can achieve very fine finishes, even mirror surfaces. Chemical and electrochemical finishes are also effective. Pickling removes scale. Passivation enhances the protective layer. Electropolishing smooths micro-asperities. We also apply coatings and platings. These can fill micro-valleys or provide wear resistance. Deburring removes any sharp edges or unwanted material.

Machining and Secondary Operations

Sometimes, castings require further work. I perform machining operations for tighter tolerances. This ensures precise dimensions for critical features. Secondary operations might include drilling, tapping, or grinding. These steps add specific functionalities to the cast part. They ensure the component is ready for its intended application.

Rigorous Quality Control and Inspection in Stainless Steel Investment Casting

I know that even with the best processes, rigorous quality control and inspection are essential. They ensure every part meets our high standards. I implement a comprehensive quality control plan, following ISO quality management systems. This includes on-site, random, and final inspections.

Non-Destructive Testing (NDT) Methods

I rely on non-destructive testing (NDT) methods to assess internal and external integrity without damaging the part. For surface defects, I use several techniques. Visual inspection is my first step. I examine the casting surface closely for cracks, porosity, or rough finishes. I use magnifiers or borescopes for hard-to-see areas. For finer surface flaws, I use liquid penetrant testing (LPT). I apply a dye that seeps into cracks, making them visible after I apply a developer. For magnetic materials, I use magnetic particle testing (MPT). I create a magnetic field in the casting. Then, I apply fine magnetic particles. They collect at any surface or near-surface defects, making them easy to spot.

For internal defects, I use radiographic testing. This method uses X-ray and gamma ray to penetrate the casting. It helps me detect internal flaws like shrinkage, looseness, inclusions, pores, and cracks. I can determine the position, size, and type of these defects. However, interpreting the X-ray film requires considerable experience. The image may not always reflect the exact shape of the defect due to magnification and distortion.

Dimensional Inspection Techniques

I ensure every casting meets precise dimensional requirements. I use various tools for this. Vernier calipers, height gauges, and thread gauges help me measure specific features. For complex geometries, I use a Coordinate Measuring Machine (CMM). This allows me to perform precise dimensional inspection. It confirms the casting matches design specifications and meets specific tolerances. I also check for linear tolerances like length, flatness, and concentricity. I verify geometric tolerances for parallelism, roundness, and straightness.

Metallurgical Analysis and Reporting

I perform thorough metallurgical analysis to confirm material properties. Before pouring, I analyze molten metal samples with a spectrometer. This ensures the chemical composition complies with ASTM and AMS alloy specifications. I re-test if needed and record every alloy melt's chemical composition. I also conduct mechanical properties testing. This includes hardness testing, which is non-destructive. I perform tensile testing to determine ultimate tensile strength, yield strength, and elongation. For specific alloys like duplex stainless steel, I follow ASTM A995. This standard ensures optimum heat treatment and confirms chemical configuration and mechanical properties. I also adhere to ASTM A890 for other austenitic/ferritic stainless steels. I provide detailed reports with all test results, ensuring full transparency and confidence in our products.

I believe these six factors are deeply connected. They are vital for consistent quality in our castings. Prioritizing these areas helps me create superior products. This also enhances product performance for our customers.

Continuous improvement in these factors drives my long-term success. It also helps me maintain a competitive edge in the market.

FAQ

What is investment casting?

I use investment casting to make detailed metal parts. First, I create a wax model. Then, I cover it with ceramic. I melt the wax away, leaving a mold. I pour molten metal into this mold. This method helps me create very precise components.

Why is material selection important for Stainless Steel Investment Casting?

I know choosing the right material is crucial. It directly impacts the part's strength. It also affects its resistance to corrosion. Different stainless steel grades offer unique benefits. I select the best grade for each specific application.

How do I ensure quality in Stainless Steel Investment Casting?

I ensure quality by controlling every step. I check wax patterns for accuracy. I manage the shell building process carefully. I also control pouring and cooling. Finally, I perform rigorous inspections. This guarantees excellent Stainless Steel Investment Casting parts.

What are common defects I look for?

I look for common defects like porosity, which are tiny holes. I also check for shrinkage voids. These are gaps that form when metal cools. I use special tests to find these issues. This helps me deliver high-quality parts.
